CCF170RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 76.200 mm
      (Equiv. 3 in.)
    • Overall Width (D) 46.038 mm
      (Equiv. 1.813 in.)
    • Bore (B) 25.400 mm
      (Equiv. 1 in.)
    • Width (C) 44.450 mm
    • E 57.150 mm
    • Dynamic Load Rating 7130.472 kg
    • Static Load Rating 22597.972 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 6831K54
      • CCF170
      • CCF-170
      View full details

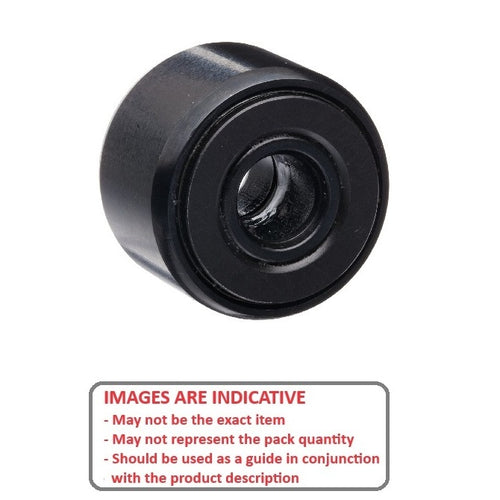

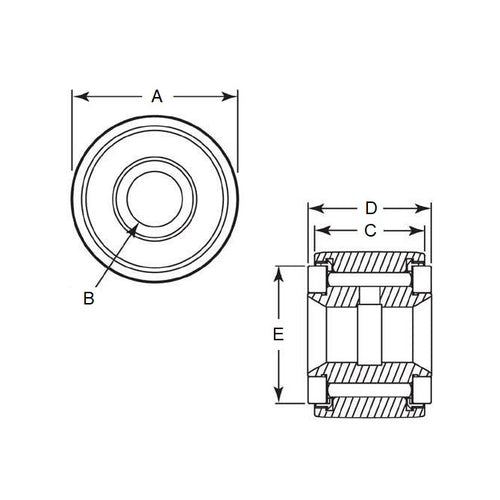

      CCF170RSDiagramCCF170RSImage
