AD-4275 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

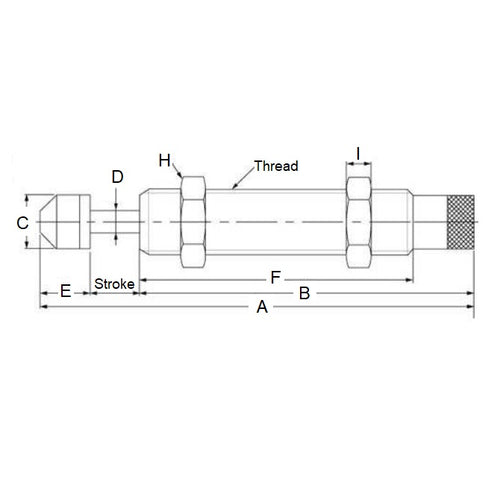

    • Stroke : 75.0 mm
      (Equiv. 2.953 in.)
    • Thread (C) M42x1.5 (42.0mm)
    • Length (A) 301.5 mm
      (Equiv. 11.87 in.)
    • Shaft Size (D) 12.0 mm
    • Max. Effective Mass 6000 Kg
    • Max. Nm Per Cycle 750 Nm
    • Max. Nm Per Hour 180000 Nm
    • Max Impact Speed 4.5 m/s
    • Weight 1710 g
    • Body Length (B) 187.5 mm
    • Tip Diameter (C) 44.5 mm
    • Tip Length (E) 39.0 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

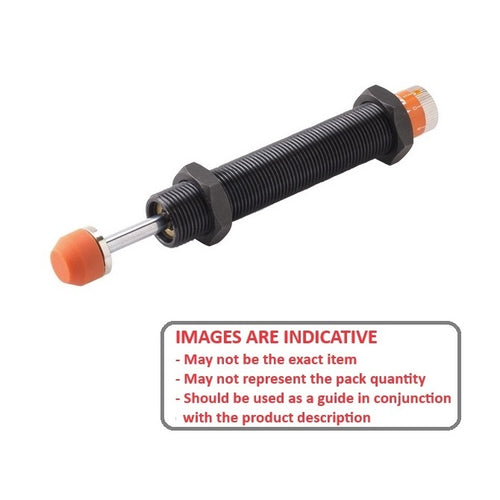

      AD-4275DiagramAD-4275Image
