Miniature Bearings Australia
CFB075-40-120M-R60 - Datasheet
MBA
Category Information

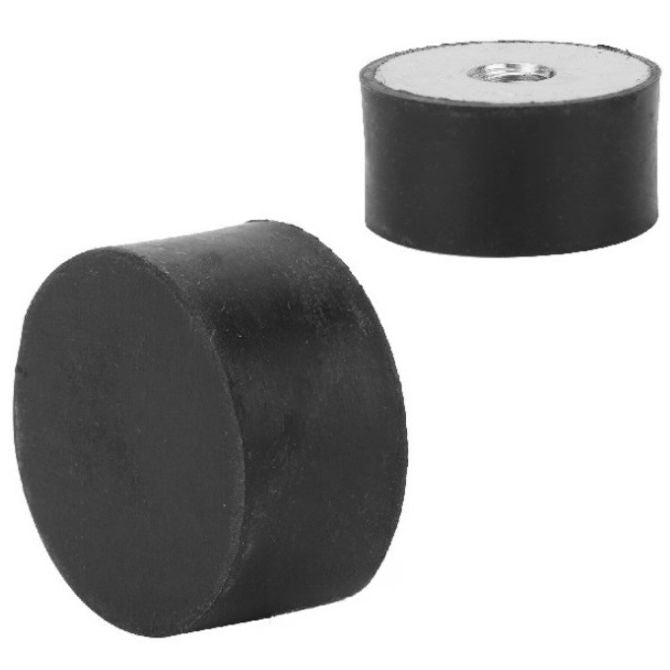

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
75.0
mm
(Equiv. 2.953 in.) - Body Height (H)
40.0
mm
(Equiv. 1.575 in.) - Thread Size M12x1.75
- Shore Hardness 60
- Compression Load 980 Kg (lbs)
- Deflection 10.0 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7540FFB12-60
- 7540FFB1260
