CFB075-35-120M-R55 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 75.0 mm
    (Equiv. 2.953 in.)
  • Body Height (H) 35.0 mm
    (Equiv. 1.378 in.)
  • Thread Size M12x1.75
  • Shore Hardness 55
  • Compression Load 1880 Kg (lbs)
  • Deflection 6.3 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • AVI 7535FFB12-55-M12
  • 7535FFB1255M12
View full details

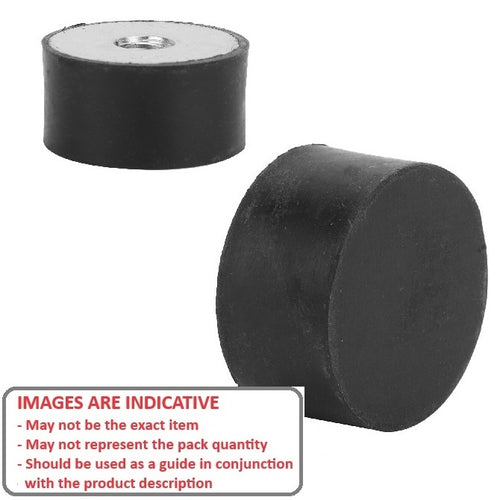

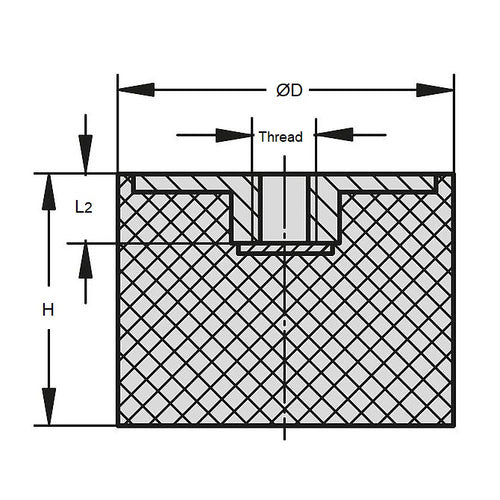

CFB075-35-120M-R55DiagramCFB075-35-120M-R55Image
