CMB075-30-120M-R60 - Datasheet
MBA
Category Information

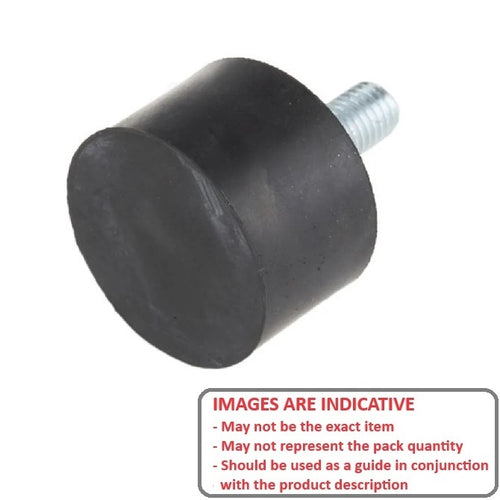

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

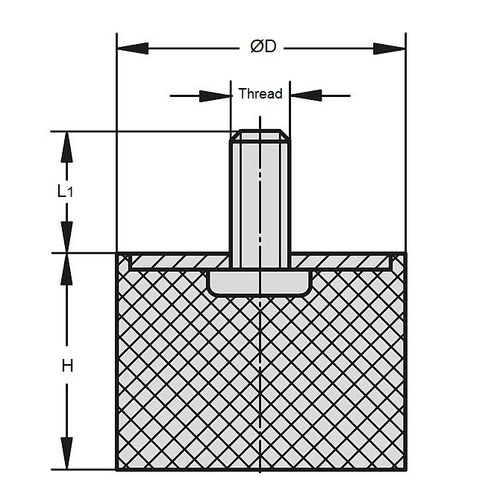

- Nom. Body Diameter (D)
:
75.0
mm
(Equiv. 2.953 in.) - Body Height (H)
30.0
mm
(Equiv. 1.181 in.) - Thread Size (G) M12x1.75
- Shore Hardness 60
- Thread Length (L1) 37.0 mm
- Compression Load 1309 Kg
- Deflection 7.5 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7530MFB3760
- 7530MFB37-60
