CFB075-25-120M-R60 - Datasheet
MBA
Category Information

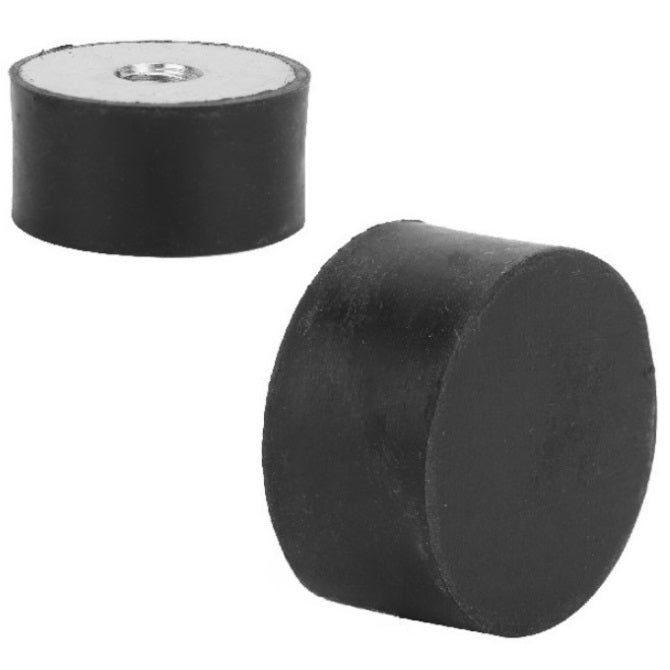

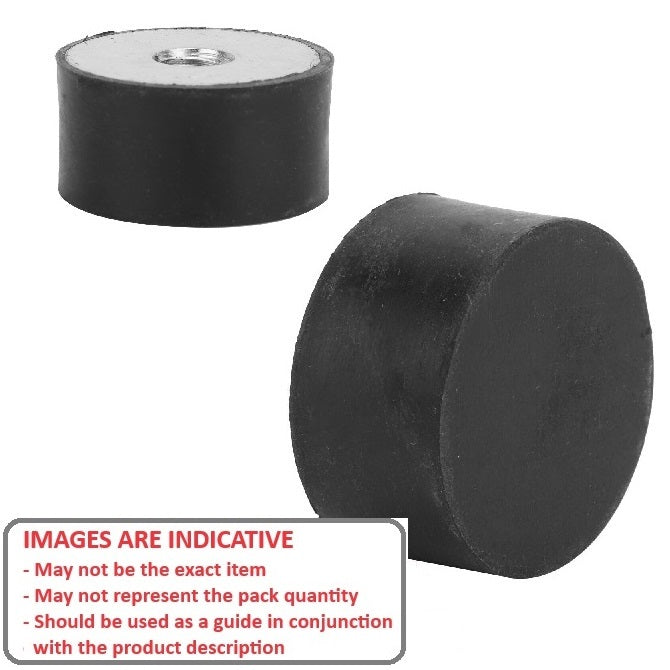

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

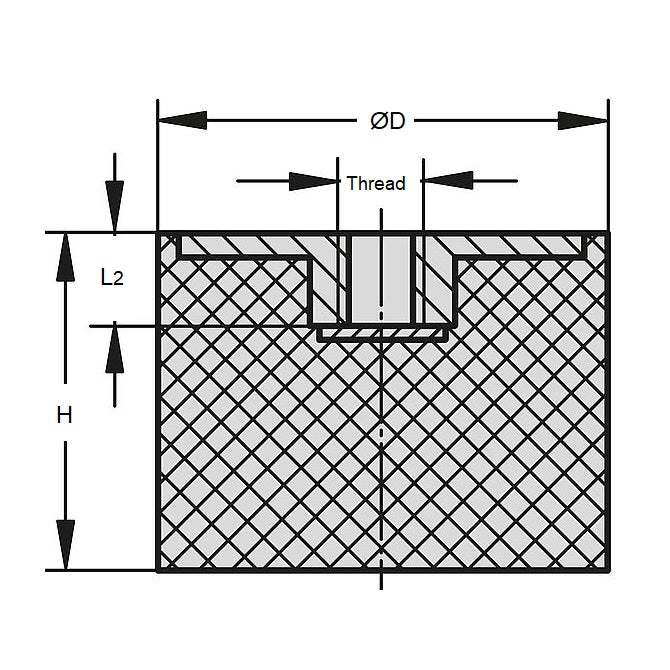

- Nom. Body Diameter (D) : 75.0 mm
- Body Height (H) 25.0 mm
- Thread Size M12x1.75
- Shore Hardness 60
- Compression Load 1365 Kg (lbs)
- Deflection 6.3 mm
- Configuration Female / Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- EZY127525
- E-ZY-12-75-25
