ACE111RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Adjustable

Adjustable Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 73.9 mm
    • Thread (T) 1.3/4-12
    • Length (A) 246.13 mm
    • Shaft Diameter (D) 12.70 mm
    • Effective Weight 70.31 - 14968.55 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-111
      • ACE111
      View full details

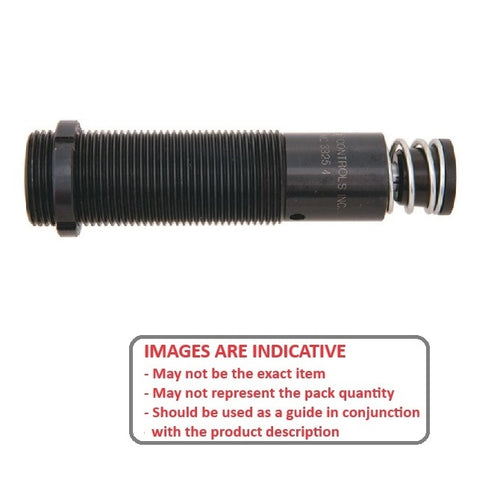

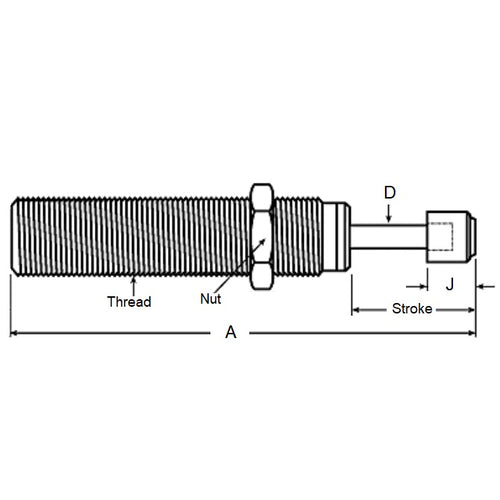

      ACE111RSDiagramACE111RSImage
