ACE45753RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 73.9 mm
      (Equiv. 2.909 in.)
    • Thread (T) 1.3/4-12
    • Length (A) 246.13 mm
      (Equiv. 9.69 in.)
    • Shaft Diameter (D) 12.70 mm
    • Effective Weight 784.71 - 3138.86 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-4575-3
      • ACE45753
      View full details

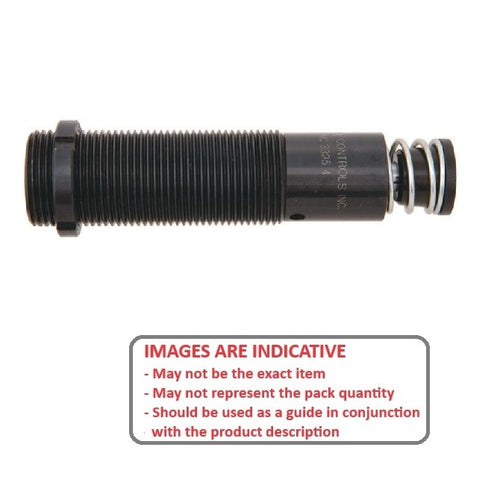

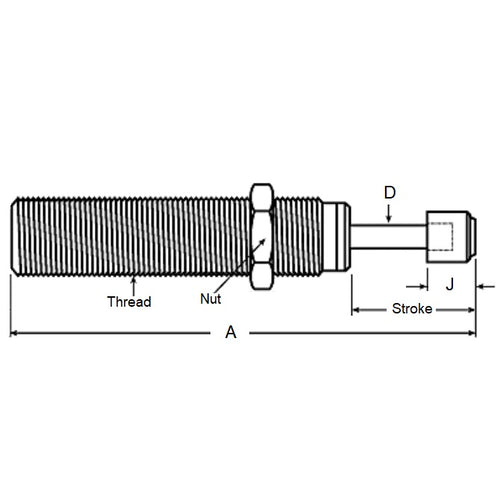

      ACE45753RSDiagramACE45753RSImage
