ACE45752RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 73.9 mm
    • Thread (T) 1.3/4-12
    • Length (A) 246.13 mm
    • Shaft Diameter (D) 12.70 mm
    • Effective Weight 231.33 - 925.33 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-4575-2
      • ACE45752
      View full details

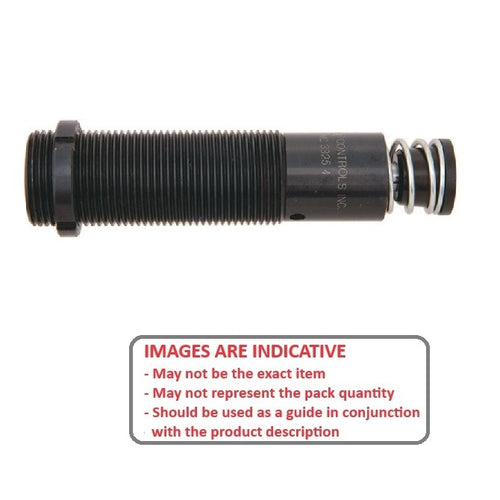

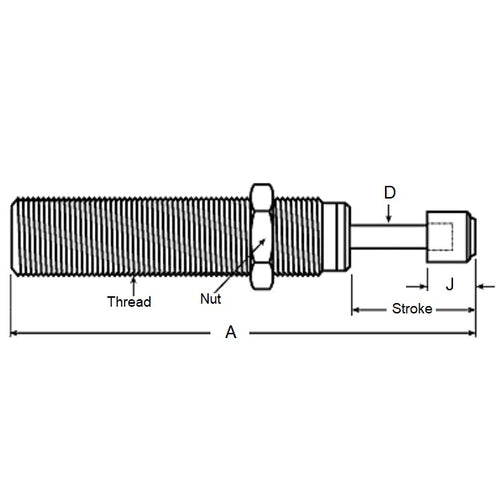

      ACE45752RSDiagramACE45752RSImage
