Miniature Bearings Australia
MAG-CP-073-10-01-SD - Datasheet
MBA
Category Information

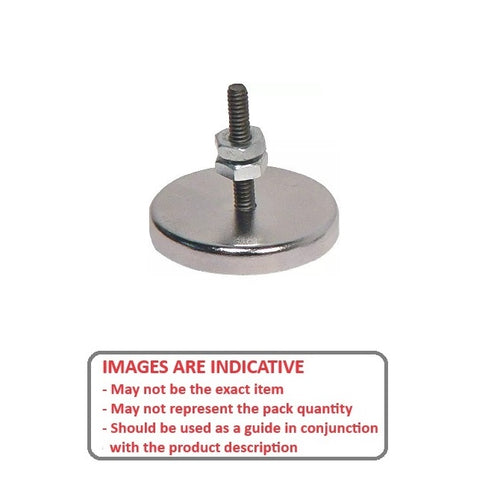

Magnets - Cup Assemblies StudCup Assemblies Stud Magnets. This is the main category in this series
Product Data

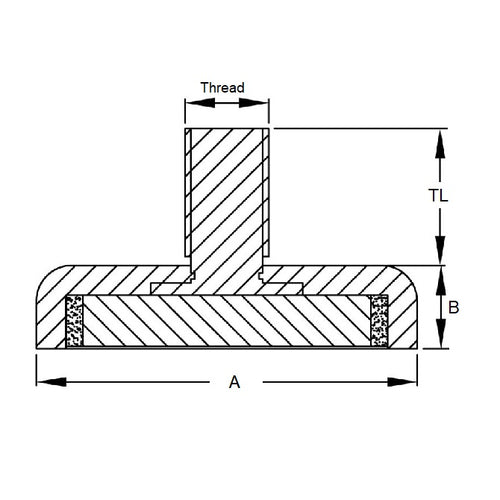

- Diameter (A)
:
73.03
mm
(Equiv. 2.875 in.) - Thickness (B)
9.53
mm
(Equiv. 0.375 in.) - Thread Size 1/4-20 UNC
- Thread Length 57.15 mm
- Holding Value 31.75 kg
Product Compliance and Data
Additional Resources
Cross References
- IM426
- IM-426
