P-020G-072-060P-AL-E-060 - Datasheet
MBA
Category Information

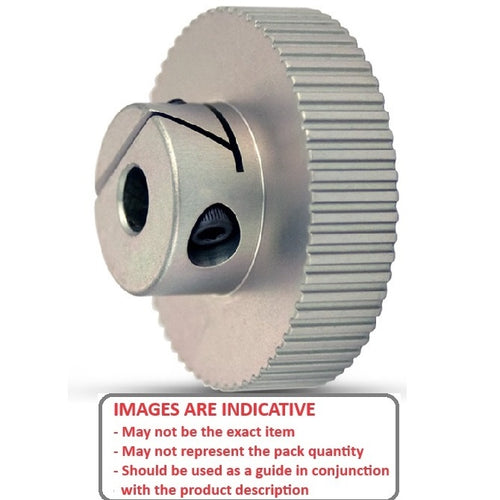

Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - EZ-LockEZ-Lock 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- EZI-LOK Hub Clamps together wit a Socket Head Cap Screw
- Socket Cap Screw is Supplied with Pulley
Product Data
- Number of Teeth : 72
- Max Belt Width
6.00
mm
(Equiv. 0.236 in.) - Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Bore Type Finished
- Locking Type EZ-Lock Hub

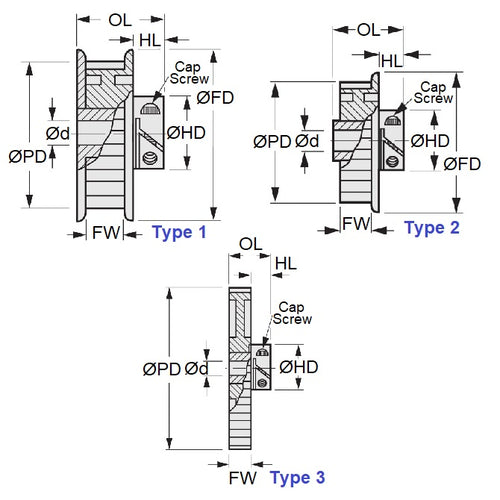

- Type 3
- Pitch Dia. (PD) 45.82 mm
- Overall Length 19.1 mm
- Hub Diameter (HD) 19.1
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 72-2P06MIA6
- 722P06MIA6
- A6D51M072NF0606
