G058B-072-M08-040-060-A-P - Datasheet
MBA
Category Information

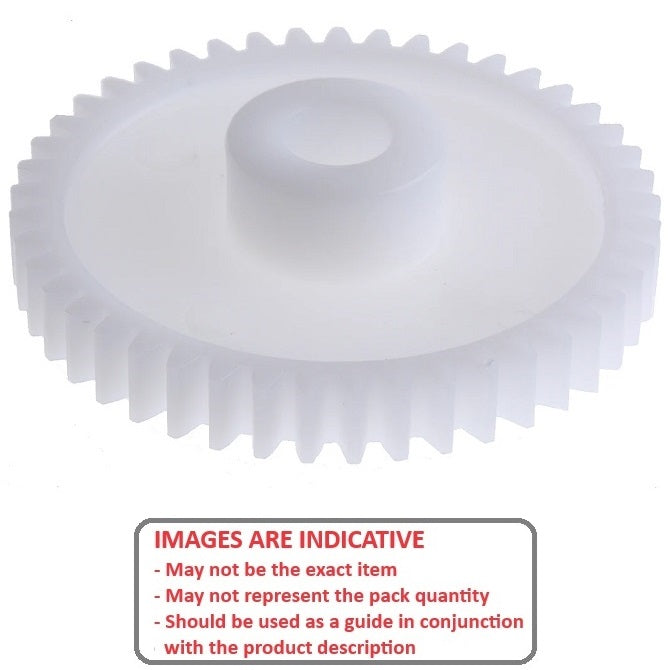

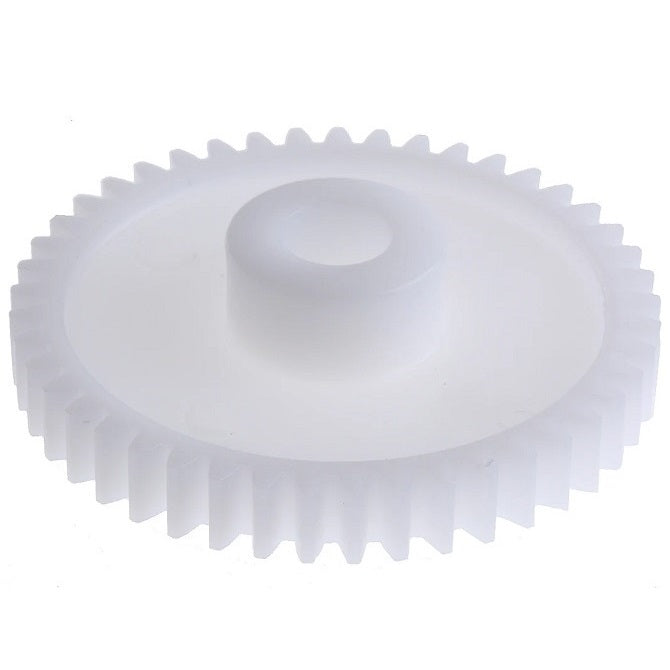

Gears - Spur - Hubbed - Module 0.8 - Plastic - StandardStandard Plastic Module 0.8 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.8. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.8mm per tooth
- Module 0.8. Approximately 2.51mm between the teeth.
Product Data
- Number of Teeth : 72

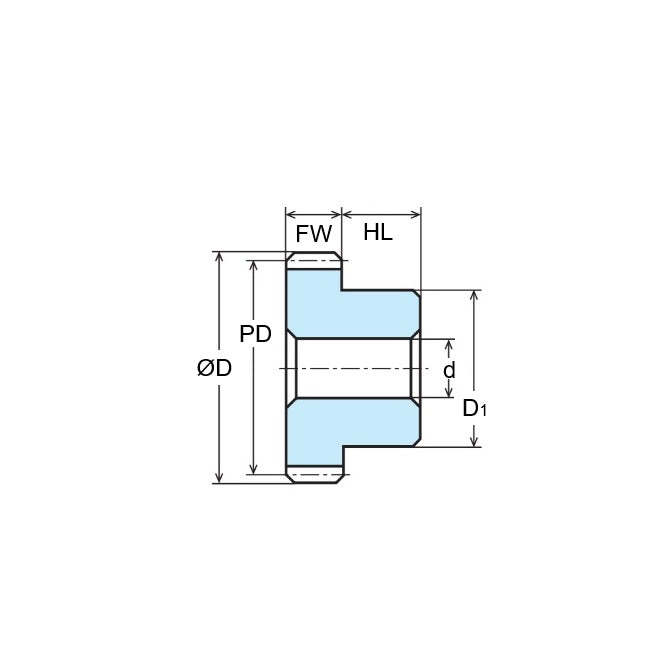

- Pitch Circle Diameter (PD)
57.60
mm
(Equiv. 2.268 in.) - Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Outside Diameter (OD) 59.20 mm
- Face Width (FW) 4.00 mm
- Type Hubbed
- 16.00
- 6.00
- Locking Method None
- Quality No Insert
- Material Acetal
Product Compliance and Data
Additional Resources
Cross References
- G058B72M08040060AP
