MSKMBL31RS - Datasheet
MBA
Category Information

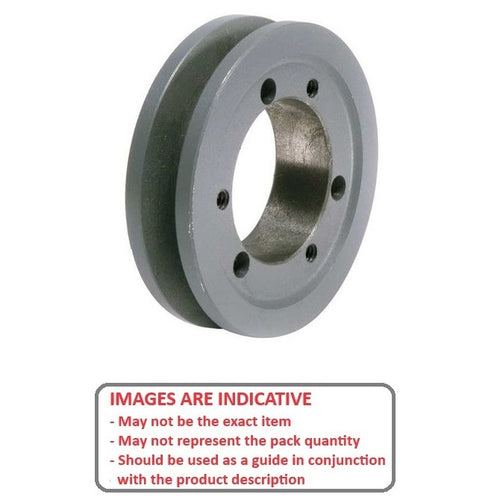

Pulleys - Vee - B or 5L - Single Row For QD BushingSingle Row For QD Bushing B or 5L Vee Pulleys. Cast iron pulleys. QD bushings are used to vary the bore sizes.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

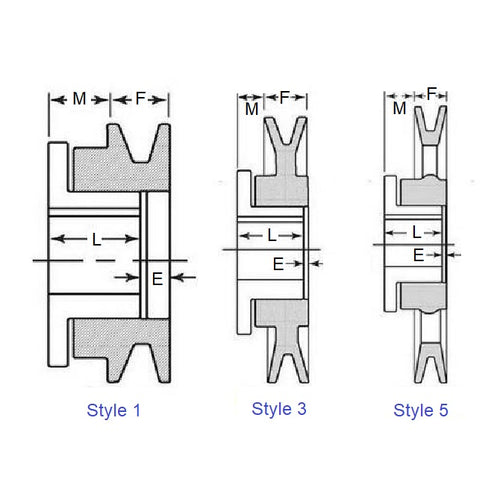

- Pitch Diameter
:
71.12
mm
(Equiv. 2.8 in.) - Style 1B
- Width (F)
23.02
mm
(Equiv. 0.906 in.) - Dimension M 25.00 mm
- Outside Diameter 80.01 mm
- Bush Length (L) 34.13 mm
- Dimension E 13.49 mm
- Bush Style QD Type L
- Material Cast Iron
