B-080G-0070-0300-NFB - Datasheet
MBA
Category Information

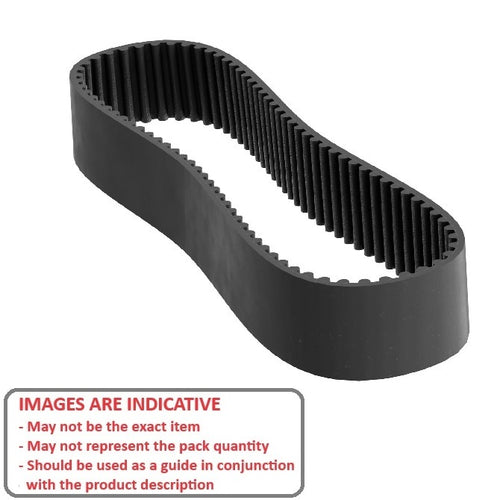

Belts - Timing 8.000mm Pitch - GT - 30mm Wide - Single SidedSingle Sided 30mm Wide GT Timing 8.000mm Pitch Belts. GT2 and GT3 Series Metric Timing Belts
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- GT3 replaces GT2 as GT2 stock is depleted

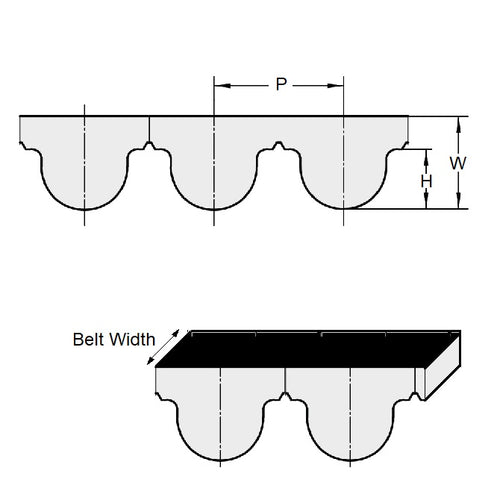

- Pitch (P) - 8mm
Product Data
- Number of Teeth : 70
- Length
560
mm
(Equiv. 22.047 in.) - Width
30.0
mm
(Equiv. 1.181 in.) - Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)
- Appearance Black
- Breaking Strength 9450 N
- Min Temperature (C) -18 Deg C
- Max Temperature (C) 66 Deg C
- Material Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 560-8MGT-30
- Gates 560-8P-30
- 5608MGT30
- 5608P30
