G028B-070-M04-030-060-AB-G - Datasheet
MBA
Category Information

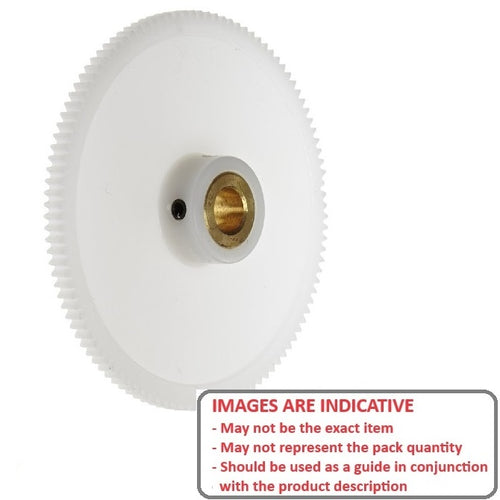

Gears - Spur - Hubbed - Module 0.4 - Plastic - With InsertWith Insert Plastic Module 0.4 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.4. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.4mm per tooth
- Module 0.4. Approximately 1.26mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 70
- Pitch Circle Diameter (PD)
28.00
mm
(Equiv. 1.102 in.) - Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Outside Diameter (OD) 28.800 mm
- Face Width (FW) 3.000 mm
- Type Hubbed
- Hub Diameter (D1) 16.00 mm
- Hub Projection (HL) 6.50 mm
- Locking Method Set Screw
- Quality ISO 9 / Machined
- Material Acetal - Brass Insert
Product Compliance and Data
Additional Resources
Cross References
- G028B70M04030060ABG
