CFF070-45-100M-R60 - Datasheet
MBA
Category Information

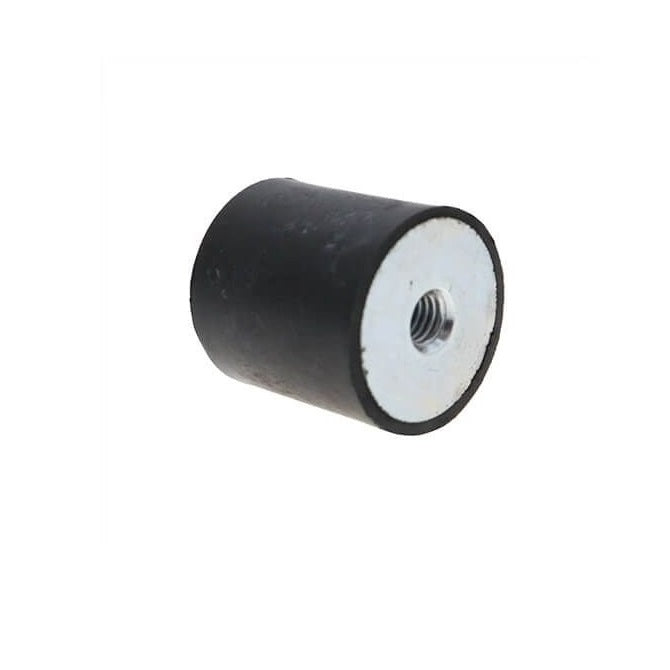

Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nom. Body Diameter (D)
:
70.0
mm
(Equiv. 2.756 in.) - Body Height (H)
45.0
mm
(Equiv. 1.772 in.) - Thread Size M10x1.5
- Shore Hardness 60
- Compression Load 240 (514) Kg (lbs)
- Deflection 3.9 mm
- Max Shear Load 57.1 (128) Kg (lbs)
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- C-ZY-10-70-45
- CZY107045
