Miniature Bearings Australia
CFB070-40-100M-R70 - Datasheet
MBA
Category Information

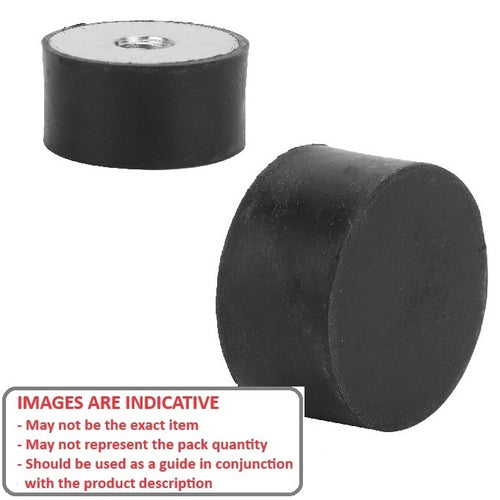

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

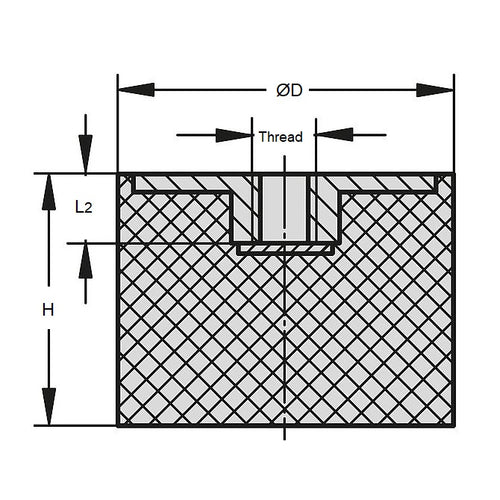

- Nom. Body Diameter (D)
:
70.0
mm
(Equiv. 2.756 in.) - Body Height (H)
40.0
mm
(Equiv. 1.575 in.) - Thread Size M10x1.5
- Shore Hardness 70
- Compression Load 1040 Kg (lbs)
- Deflection 10.0 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7040FFB1070
- 7040FFB10-70
