RPI-079-080-C - Datasheet

MBA

Product Data

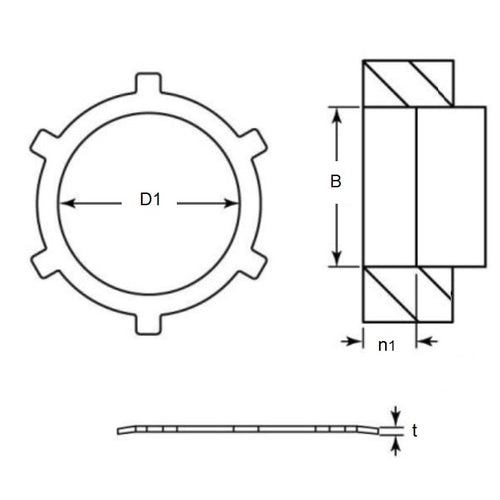

• Housing Bore (B) Min : 7.90 mm
  (Equiv. 0.311 in.)
• Housing Bore (B) Max 7.96 mm
  (Equiv. 0.313 in.)
• Inside Clearance (D1) 3.45 mm _{+ / - 0.13}
  (Equiv. 0.136 in.)
• Thickness (t) 0.25 mm +/- 0.03
• Recommended Depth (n1) 1.02 mm
• Thrust Load 1106 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A132
• Small Parts RSI-5
• NoCor TI-031
• N13050031APP
• N1305-0031APP
• N1305-0031-APP
• TI031
• RSI5
