PLIT-080-158C-68-KP-C - Datasheet

MBA

Category Information

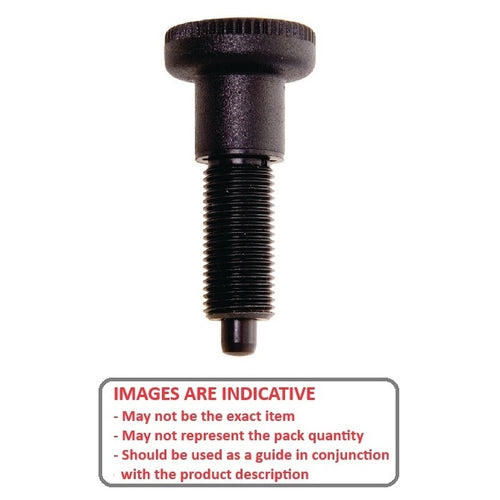

Plungers - Indexing Pull Knob - Steel - Standard

Standard Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : 5/8-11 UNC (15.88mm)
    • Overall Length (A) 68.0 mm
      (Equiv. 2.677 in.)
    • Initial End Force 0.3 N
    • Final End Force 0.8 N
    • Tip Diameter (C) 8.0 mm
    • Tip Length (D) 8.0 mm
    • Hex Height (F) 10.0 mm
    • Knob Diameter (J) 33.0 mm
    • Hex Size (K) 19.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP502
      • KBP-502
