K-0794-0794-3175AB-C - Datasheet
ExaktKey
Category Information
Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

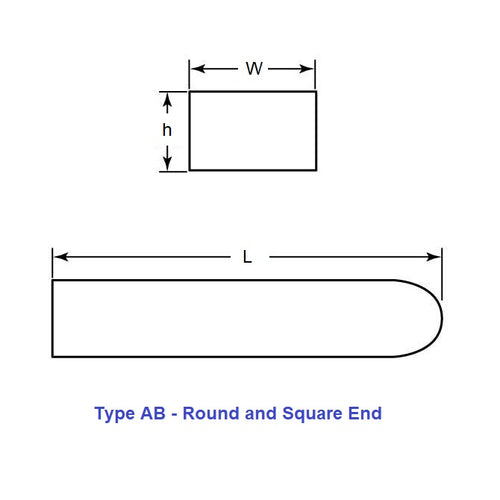

- Width (W)
:
7.94
mm
+ 0 / - 0.036
(Equiv. 0.313 in.) - Height (h)
7.94
mm
+ 0 / - 0.036
(Equiv. 0.313 in.) - Length (L)
31.75
mm
+ / - 0.25
(Equiv. 1.25 in.) - Finish Plain
- Tolerance Type Standard Undersized

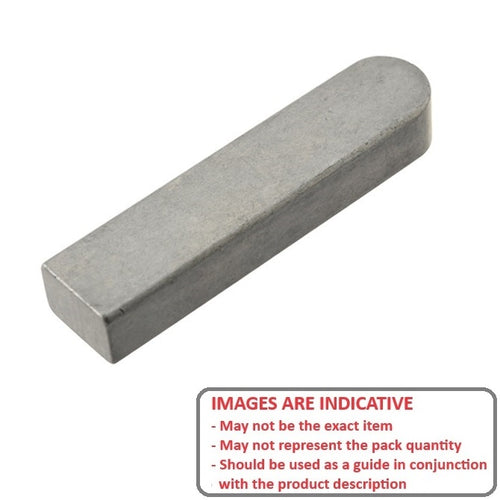

- End Type AB (1 end rounded, other end square)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3303120312-1250
- 33031203121250
