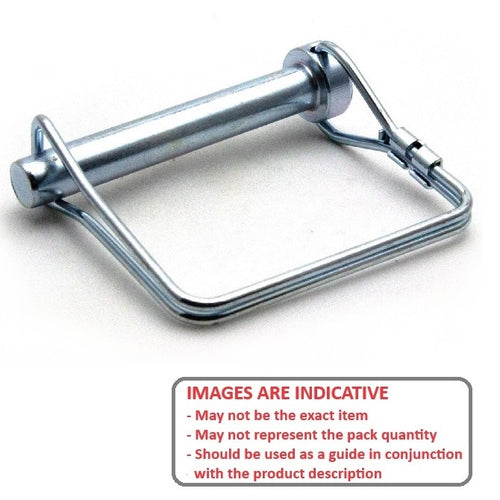

LYP-Q2-079-064-CZ - Datasheet

MBA

Product Data

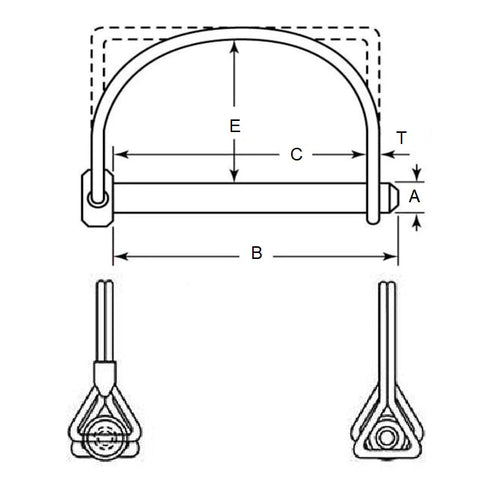

• Pin Diameter (A) : 7.94 mm _{- 0.051 / - 0.178}
  (Equiv. 0.313 in.)
• Grip Length (C) 63.50 mm _{+ 0.00 / - 6.35}
  (Equiv. 2.5 in.)
• Wire Thickness (T) 2.3 mm
  (Equiv. 0.091 in.)
• Clearance To Wire (E) 44.5 mm
• Pin Length (B) 69.9 mm
• Weight Per Piece 54 g
• Finish Zinc Plated
• Material Carbon Steel Spring Wire Zinc Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 98416A574
• NoCor SNAP-312-2500S
• WMG80
• WMG-80
• SNAP3122500S
