ECB-0064-0079-C - Datasheet
MBA
Category Information

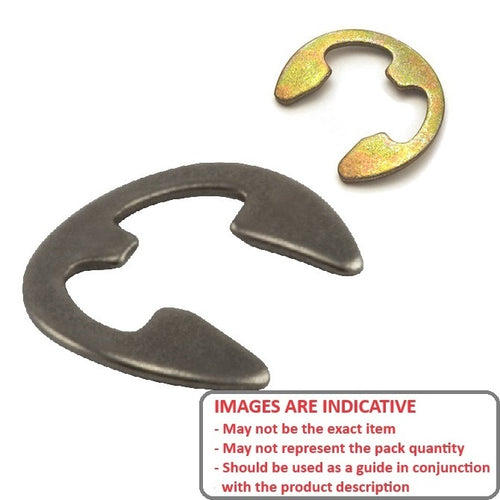

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data

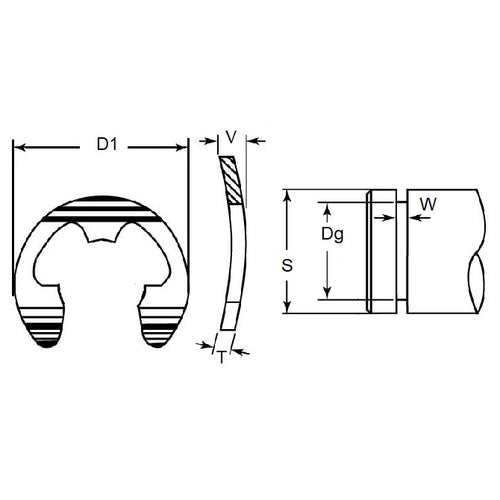

- Minimum Rec. Shaft Dia (S)
:
7.94
mm
(Equiv. 0.313 in.) - Groove Dia. (Dg)
6.35
mm
+ 0.076 / - 0.000
(Equiv. 0.25 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.051
(Equiv. 0.035 in.) - Clip OD Loose (D1) 12.70 mm
- Groove Width (W) 0.81 mm
- Ring Width (X) 1.19 mm
- Force Required to Flatten 13.4 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98398A125
- N1501-X031
- N1501X031
