ECL-0064-0079C-C - Datasheet
MBA
Category Information

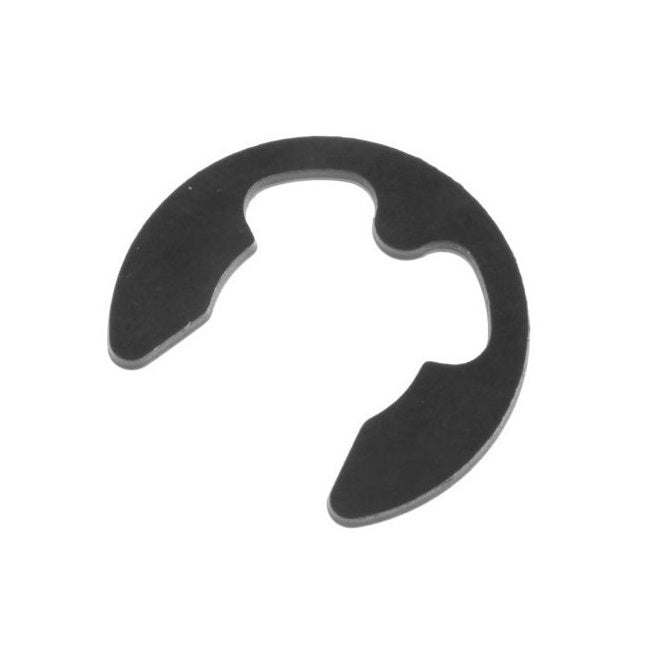

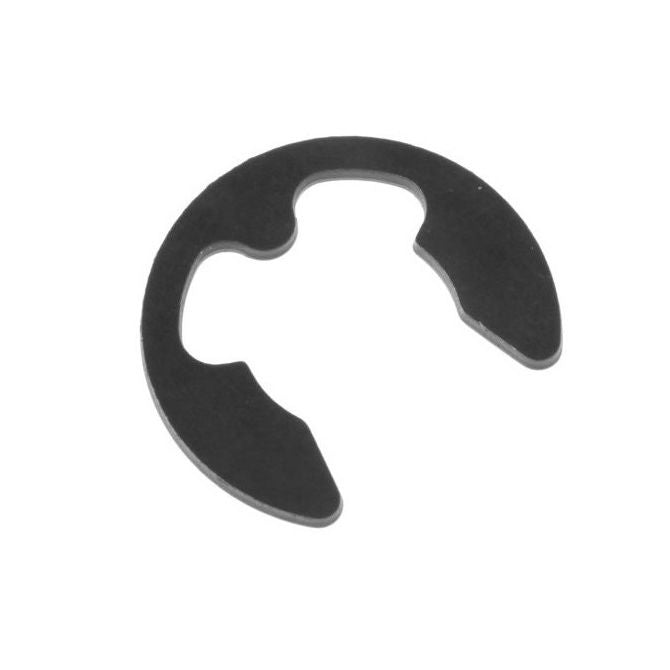

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

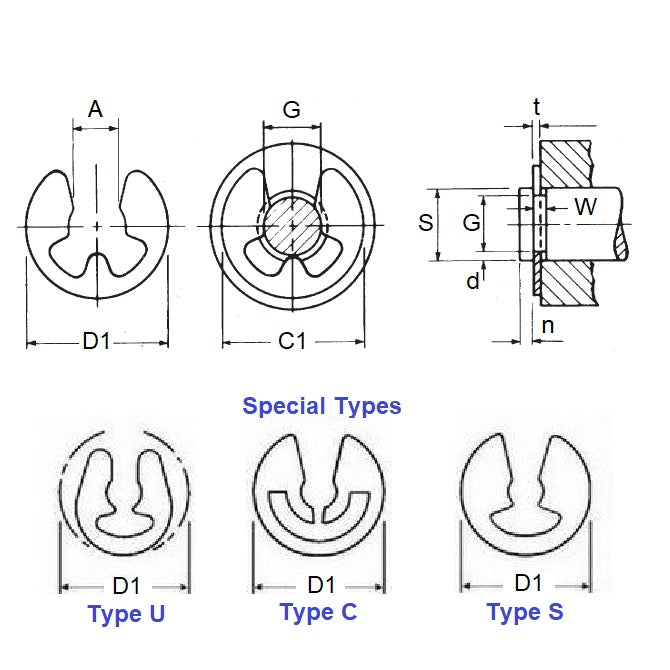

- Minimum Rec. Shaft Dia (S)
:
7.94
mm
+ 2.54 / - 0.00
(Equiv. 0.313 in.) - Groove Dia. (Dg)
6.35
mm
(Equiv. 0.25 in.) - Clip Thickness (T)
0.89
mm
(Equiv. 0.035 in.) - Clip OD Loose (D1) 14.94 mm
- Groove Width (W) 0.99 mm
- Maximum Rec. Shaft Dia (S) 10.48
- Clip OD in groove (C1) 15.49 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- IRR 1200-031
- Military 3215-031
- Waldes 5144-031
- RotorClip RE-031
- RE031
- B1500-A250
- B1500-A250APP
- B1500A250APP
- 5144031
- 1200031
- 3215031
- N1540-0031
- N1540031
- N1540-031
- N1540-0031APP
- N15400031APP
