ECL-0064-0079A-S15 - Datasheet
MBA
Category Information

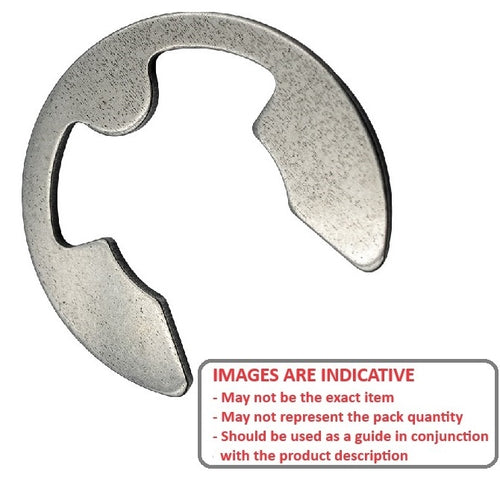

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
7.94
mm
+ 2.54 / - 0.00
(Equiv. 0.313 in.) - Groove Dia. (Dg)
6.35
mm
+ 0.076 / - 0.000
(Equiv. 0.25 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 12.70 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 10.48
- Clip OD in groove (C1) 13.21 mm
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 98408A132
- N1500-X031KSF
- N1500X031KSF
- S73LW2-ER133-31
- S73LW2ER13331
