CBLC-794-GAL-NY-719 - Datasheet
MBA
Category Information
Cable and Accessories - Cable - Miniature - CoatedCoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Recommended that nylon coating is stripped prior to swaging.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.

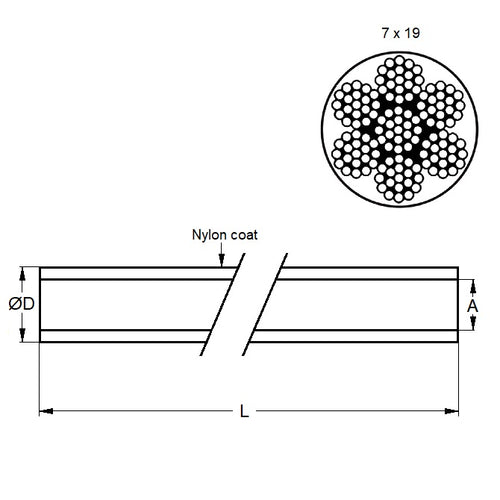

Product Data
- Overall Diameter
:
7.94
mm
(Equiv. 0.313 in.) - Cable Diameter (A)
6.350
mm
(Equiv. 0.25 in.) - Breaking Strength 3175.1 kg
- Length 30 Mtr Roll
- Coating Clear Nylon
- Strand Type 7x19
- Material Clear Nylon over Galvanized Steel
Product Compliance and Data
Additional Resources
Cross References
- 3459T34
- CBL1260
- CBL-1260
