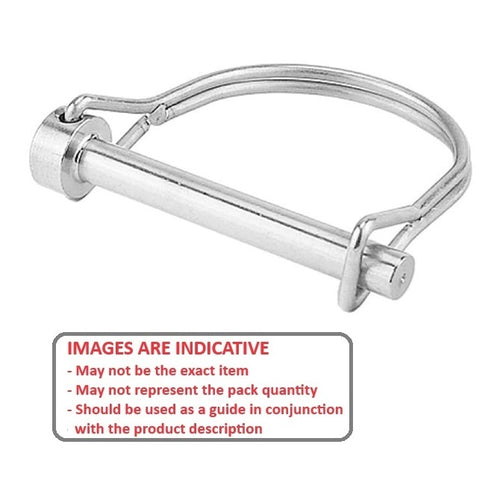

LYP-R2-079-044-S4 - Datasheet

MBA

Product Data

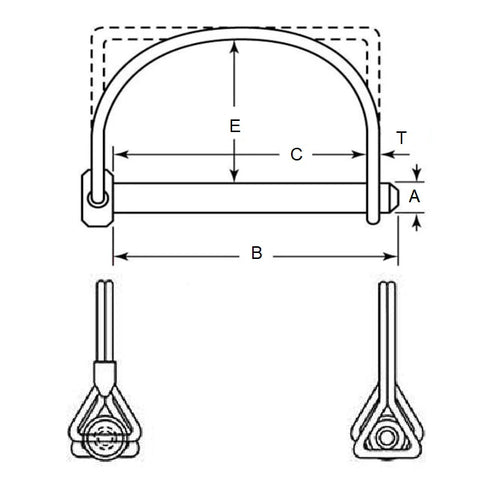

• Pin Diameter (A) : 7.94 mm _{- 0.051 / - 0.178}
  (Equiv. 0.313 in.)
• Grip Length (C) 44.45 mm _{+ 0.00 / - 6.35}
  (Equiv. 1.75 in.)
• Wire Thickness (T) 2.3 mm
  (Equiv. 0.091 in.)
• Clearance To Wire (E) 44.5 mm
• Pin Length (B) 50.8 mm
• Weight Per Piece 45 g
• Finish Passivated
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 98480A682
• NoCor SNAPS-312-1750R
• SNAPS3121750R
