KW-079-381-C - Datasheet
ExaktKey
Category Information

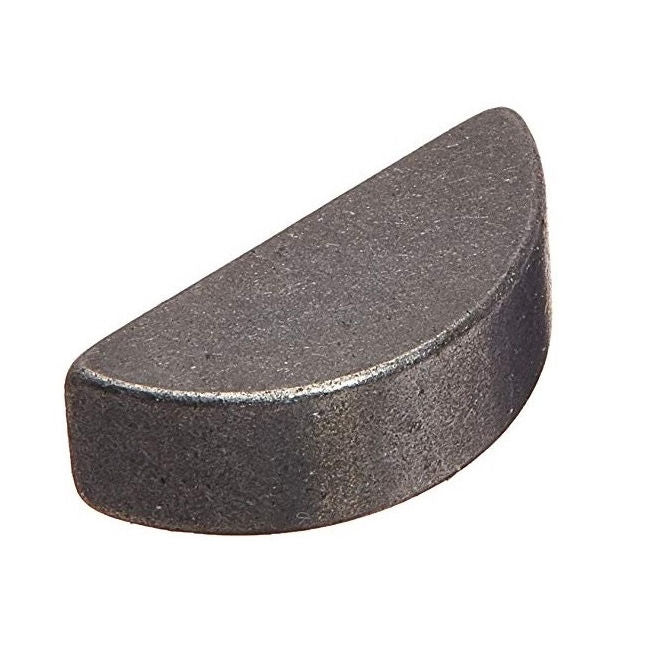

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
7.94
mm
+/- 0.025
(Equiv. 0.313 in.) - Basis Diameter (D)
38.10
mm
+/- 0.250
(Equiv. 1.5 in.) - Approx. Height (H)
16.0
mm
(Equiv. 0.63 in.) - Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 1012
- WOODRUFF 1012
- WOODRUFF 1012 Woodruff
- WOODRUFF 25 Woodruff
- 98481A260
- NoCor WKA-025
- NoCor WKC-025
- WKC025
- WKA025
