CB-254-079H-21-6S - Datasheet
KMS
Category Information

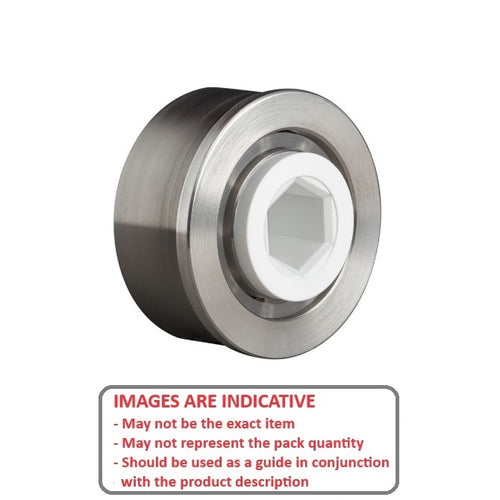

Bearings - Conveyor - Single Row - Hex Bore Stainless SteelHex Bore Stainless Steel Single Row Conveyor Bearings. 316 stainless conveyor bearings with plastic cage and plastic hex insert
- This range includes plastic and stainless steel bearings for conveyor lines using hexagonal shafting.
- Both types are ideal for coping with regular washdown.
- Loads and Speeds are for reference only. Testing recommended.
Product Data
- Hex Bore (A)
:
7.94
mm
+ 0.30 / - 0.00
(Equiv. 0.313 in.) - OD (B)
25.40
mm
+/- 0.080
(Equiv. 1 in.) - Width (C)
21.34
mm
(Equiv. 0.84 in.) - Width (D) 11.94 mm
- Flange Dia. (E) 29.46 mm
- Flange Width (F) 3.05 mm
- Max Speed Unloaded 1600 RPM
- Dynamic Load 57 Kg
- Static Load 45 Kg

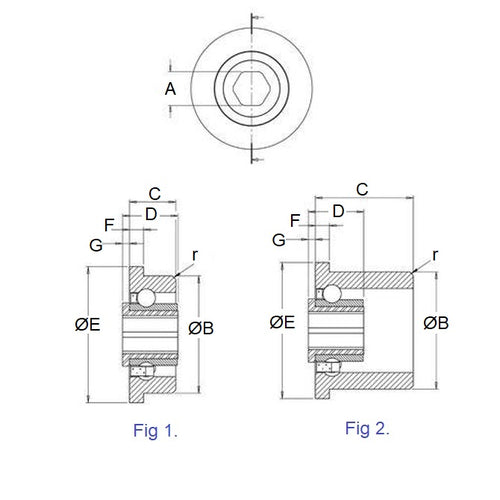

- Figure Fig 2
- Material Stainless Steel 316 Balls and Races
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- KMS SSCB312-1.0SR
- KMS SSCB312-1.0SR-6
- SSCB31210SR
- SSCB31210SR6
