CLP-079-0230-CZ - Datasheet
MBA
Category Information

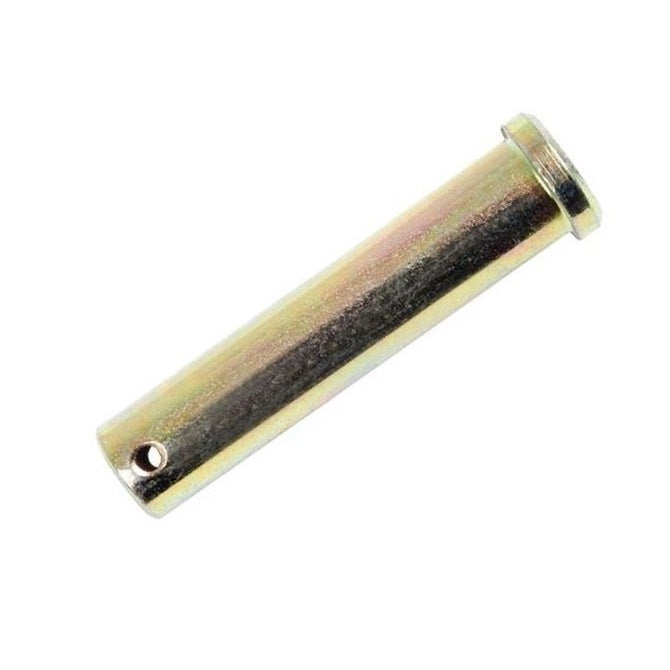

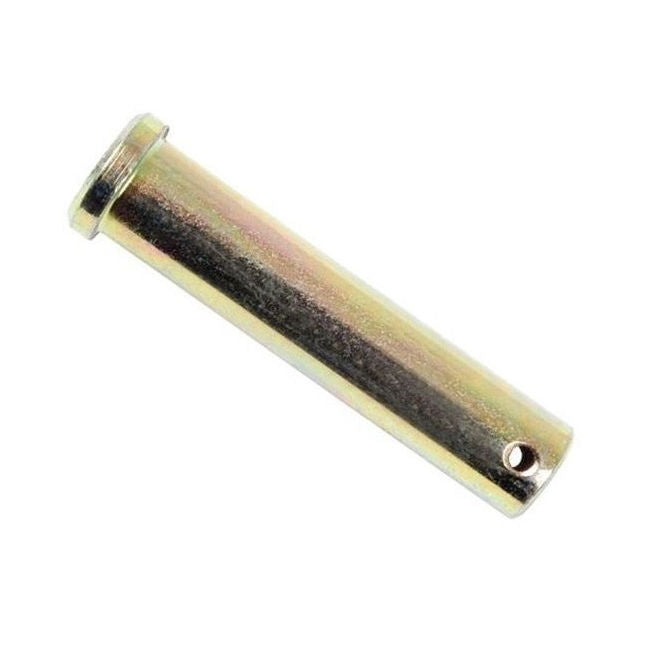

Pins - Clevis - Pin Locking - Zinc PlatedZinc Plated Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Sinc plated low carbon steel
Product Data

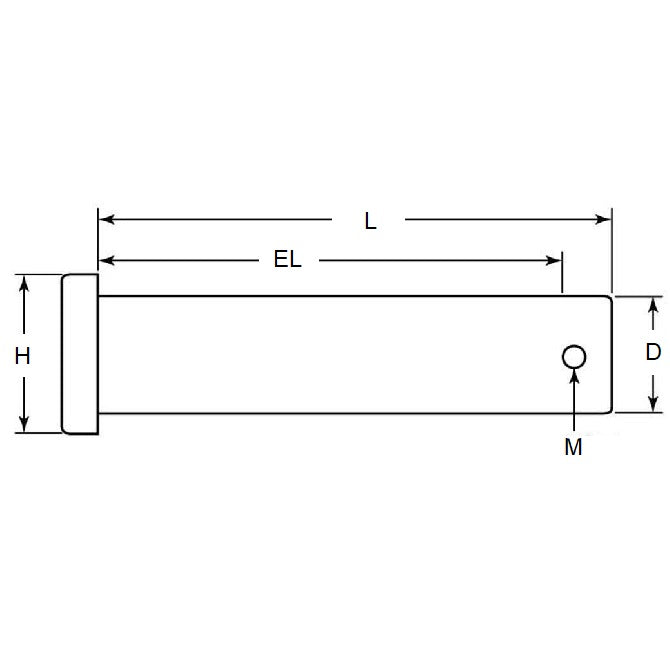

- Nominal Pin Diameter (D)
:
7.94
mm
- 0.05 / - 0.18
(Equiv. 0.313 in.) - Grip Length (EL)
23.02
mm
+ 0.51 / - 0.00
(Equiv. 0.906 in.) - Nom. Length (L)
28.58
mm
+ 0.51 / - 0.00
(Equiv. 1.125 in.) - Ret. Pin Dia. (M) 2.4 mm
- Suitable R-Clip RCL-020-057-Z
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97245A288
- NoCor CLP-0312-1125
- NoCor CLPZ-0312-1125
- NoCor CLPZ-0312-1125/B
- CLPZ03121125
- CLPZ03121125/B
- CLP03121125
- CLP0790230Z
