CLP-079-0206-P - Datasheet
MBA
Category Information

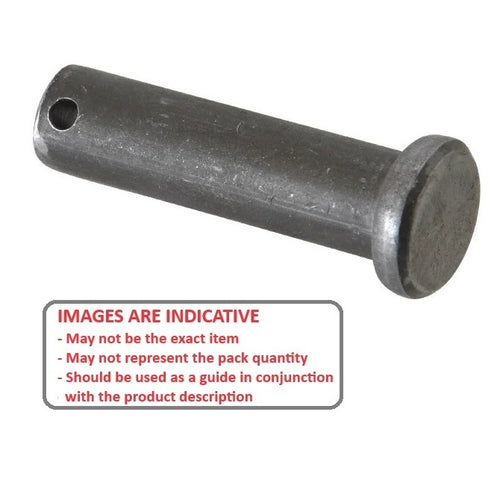

Pins - Clevis - Pin Locking - Low Carbon SteelLow Carbon Steel Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Made from low carbon steel
Product Data
- Nominal Pin Diameter (D)
:
7.94
mm
- 0.05 / - 0.18
(Equiv. 0.313 in.) - Grip Length (EL)
20.62
mm
+ 0.51 / - 0.00
(Equiv. 0.812 in.) - Nom. Length (L)
23.83
mm
+ 0.51 / - 0.00
(Equiv. 0.938 in.) - Ret. Pin Dia. (M) 2.4 mm
- RCL-020-057-Z
- Material Carbon Steel - Low Carbon 1010 or 1018 Steel
Product Compliance and Data
Additional Resources
Cross References
- 98306A214
- YP-33
- YP33
