KF079-038-OT-P - Datasheet

MBA

Category Information

Knobs - Oval Tapered Press On Phenolic

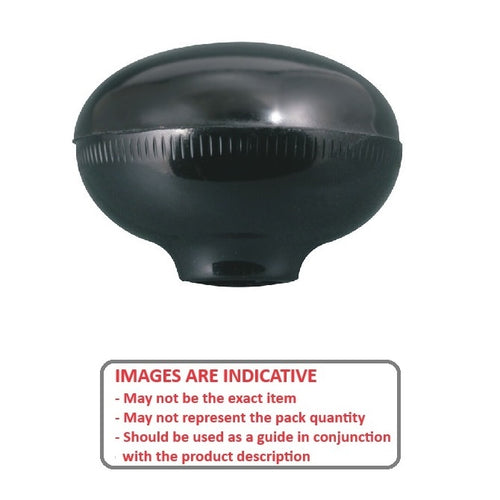

Oval Tapered Press On Phenolic Knobs. Press on knobs hold on securely without threads or set screws

  • This category will be discontinued when the remaining items are sold.
  • All items are priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.
  • Shaft diameter should be +0.000 / - 0.076 mm for best performance
  • Knob is held in place by a ribbed insert that squeezes onto the shaft.
  • Eliminates machining costs
  • Knobs will not come off with normal use but can be removed by knocking with a hammer on the underside.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

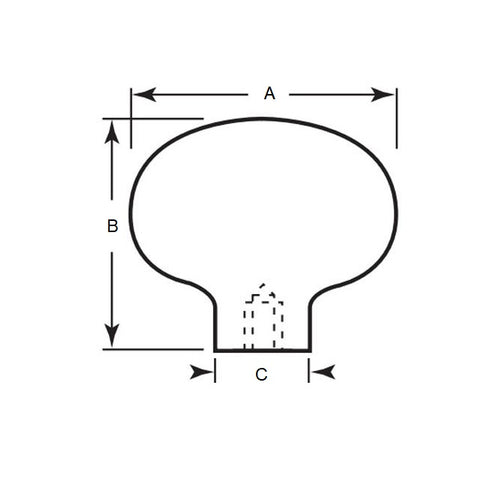

  • Shaft Diameter : Push On 7.94 mm
  • Diameter 38.10 mm
    (Equiv. 1.5 in.)
  • Bore Depth 14.3 mm
    (Equiv. 0.563 in.)
  • Length 7.9 mm
  • Material Phenolic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • POK70
  • POK-70
