Miniature Bearings Australia
KF079-029-LVR - Datasheet
MBA
Category Information

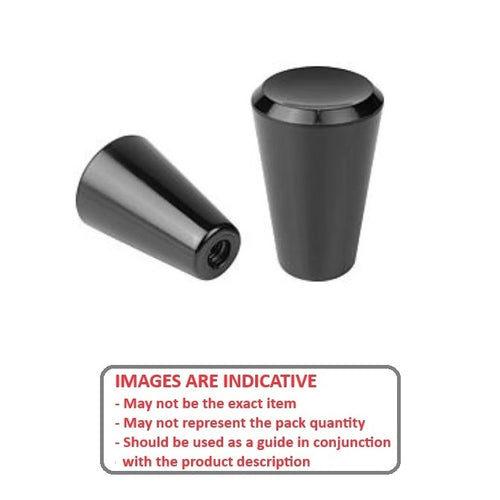

Knobs - Lever - Through BoreThrough Bore Lever Knobs. Lever knobs with moulded female threads, ideal for direct attachment to operating levers.
- Plastic (high grade gloss black phenolic) with Steel insert.
- Temperature Range: -30oC to +140oC.
- All knobs are fitted with a brass female insert.

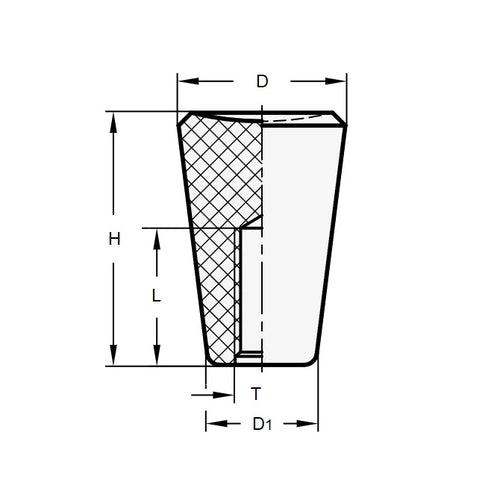

Product Data
- Hole Size : 7.94 Push On
- Major Diameter
28.58
mm
(Equiv. 1.125 in.) - Bore Length
14.3
mm
(Equiv. 0.563 in.) - Height 34.9 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- POK-115
- POK115
