Miniature Bearings Australia
0R-0079-0914-DRA2 - Datasheet
MBA
Category Information

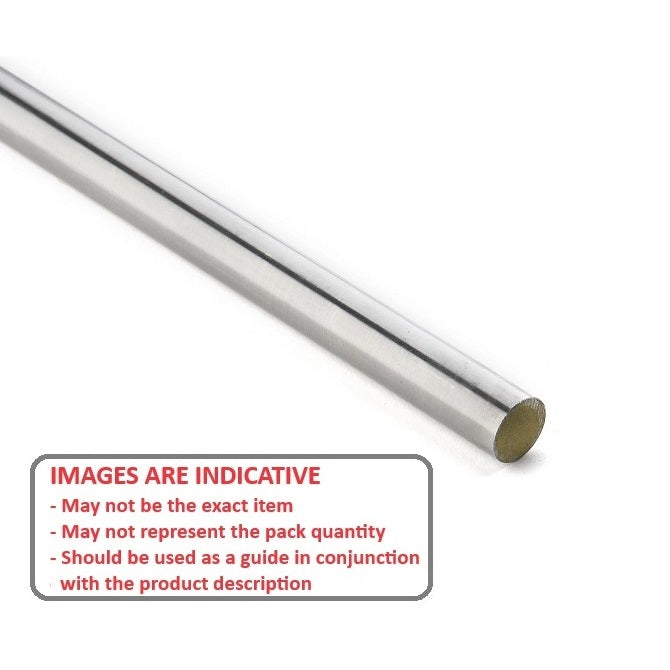

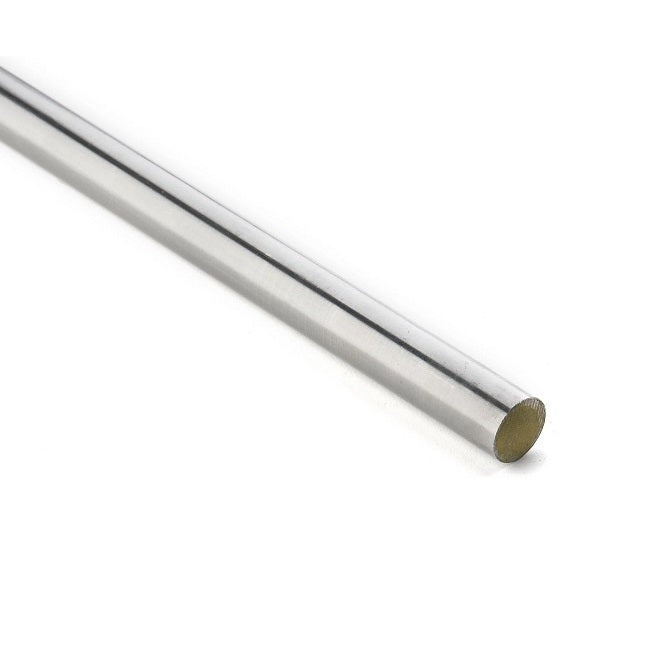

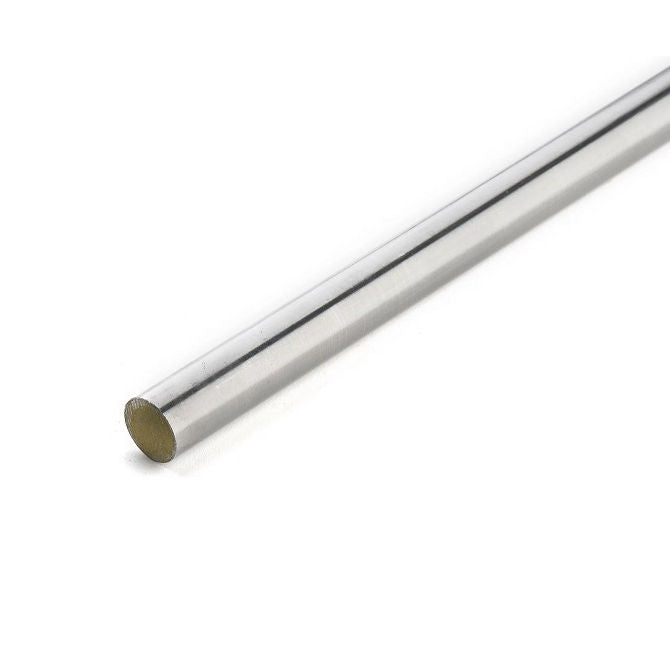

Rod - Drill - A-2 Air HardeningA-2 Air Hardening Drill Rod. For punches dies and high strength machine parts. Unhardened - requires heat treatment.
- An expanded range may be available on special order. Please enquire.
- Air hardening. Maximum abrasion resistance. 65 percent machinability.
- Requires heat treating to harden.
- Small diameters may not be perfectly straight.
- Refer engineering guides online for A-2 hardening requirements.
Product Data

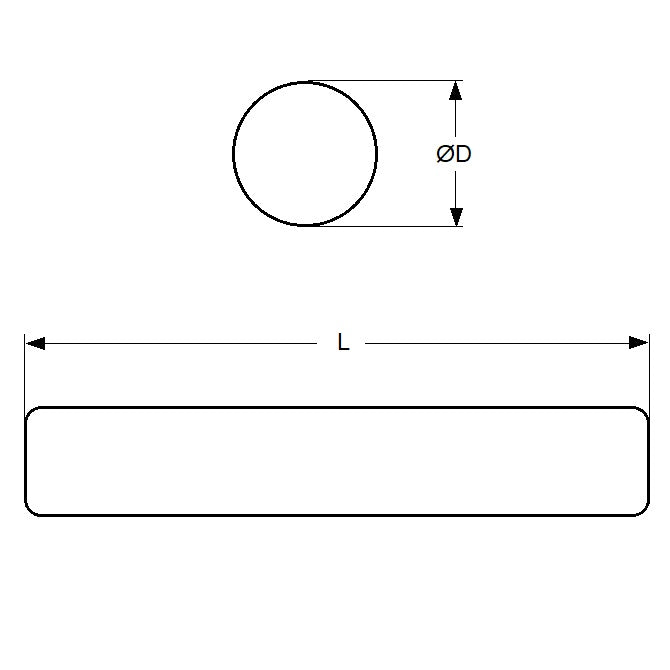

- Diameter (d)
:
7.94
mm
+/- 0.013
(Equiv. 0.313 in.) - Length (L)
914.4
mm
(Equiv. 36 in.) - Material Tool Steel
- Material Tool Steel A-2 Air Hardening
Product Compliance and Data
Additional Resources
Cross References
- ODR95
- ODR-95
