PSP-079-051-S2 - Datasheet
MBA
Category Information

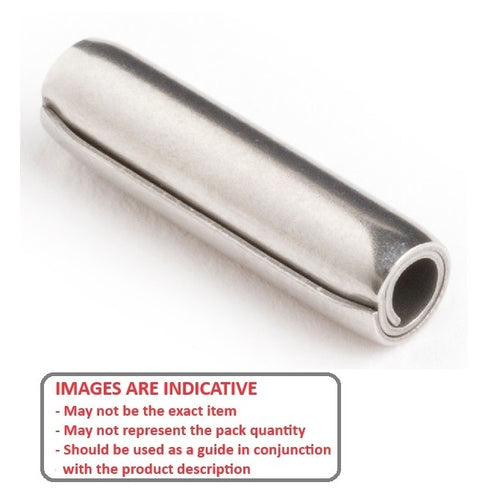

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.

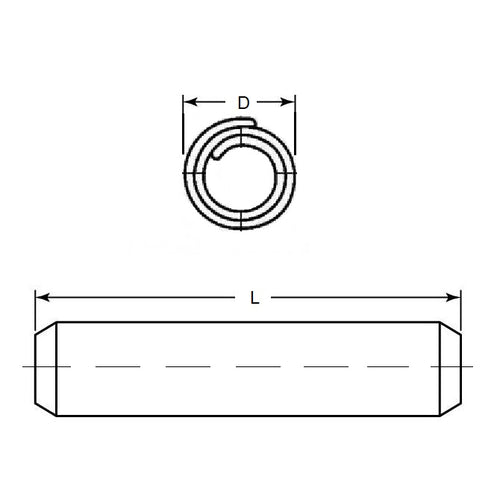

Product Data
- Nominal Hole Diameter
:
7.94
mm
(Equiv. 0.313 in.) - Length
50.80
mm
+/- 0.50
(Equiv. 2 in.) - Drill Size
7.94 - 8.10
mm
(Equiv. 0.313 in.) - Loose Diameter 8.23 - 8.56 mm
- ISO Standard Duty ASME B18.8.2
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPC3P-312-2000
- SPC3P3122000
