SBTN-0793-DE - Datasheet
MBA
Category Information

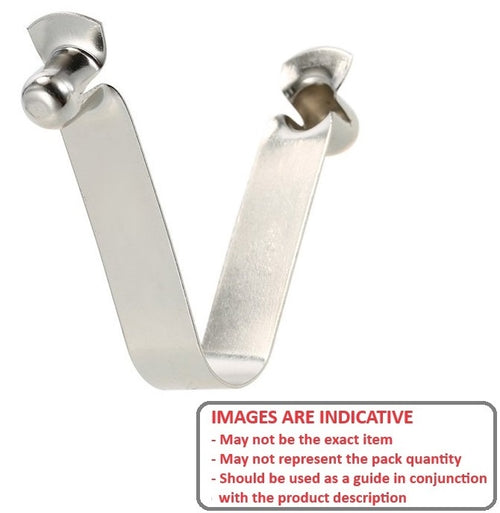

Snap Buttons - Double EndDouble End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
- Eliminates the need for rivets and screws.
- Simply snap into place in square or round tubing.
- Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating

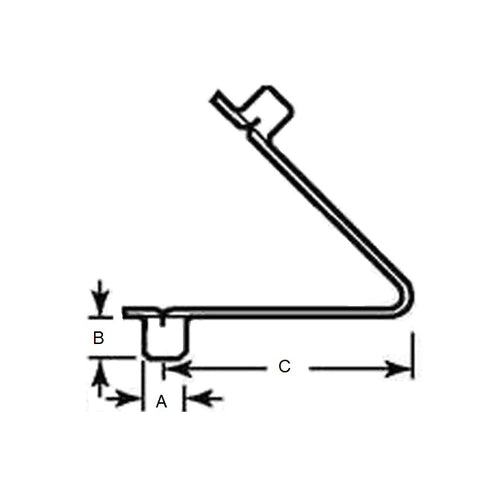

Product Data
- Button Diameter (A)
:
7.93
mm
(Equiv. 0.312 in.) - Button Height (B)
9.40
mm
(Equiv. 0.37 in.) - Material Thickness
0.508
mm
(Equiv. 0.02 in.) - Clip Width 11.18 mm
- Centre to Middle of End (C) 52.07 mm
- Use with Round Tubing 20.8 to 28.5
- Use with Square Tubing 20.8 to 28.4
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- VA4150
- VA-4150
