GHK0794-0794-102-Z - Datasheet
ENQUIRE
Category Information

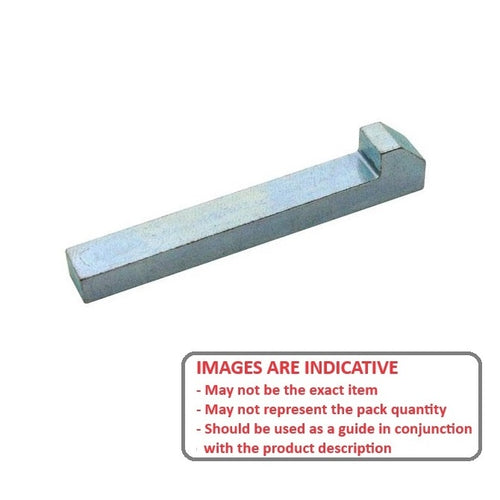

Keys - Gib Head - Zinc PlatedZinc Plated Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Key Height (H1) : 7.938 mm
- Width (W) 7.938 mm
- Length (L) 101.6 mm
- Head Height (h2) Approx. 12.7 mm
- Approx (B) 7.62 mm
- Approx (H3) 8.73 mm
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 9.53 mm
- Material Zinc Plated Steel
