COH-00794-021-06-1P-S3 - Datasheet

MBA

Category Information

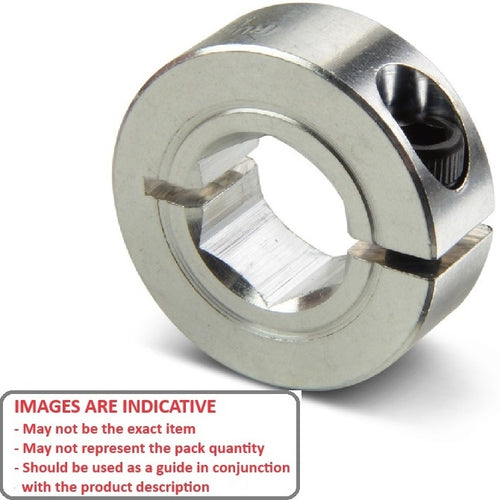

Collars - Hex Bore - One Piece - 303 Stainless Steel

303 Stainless Steel One Piece Hex Bore Collars. This is the main category in this series

  • Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
  • Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

Product Data

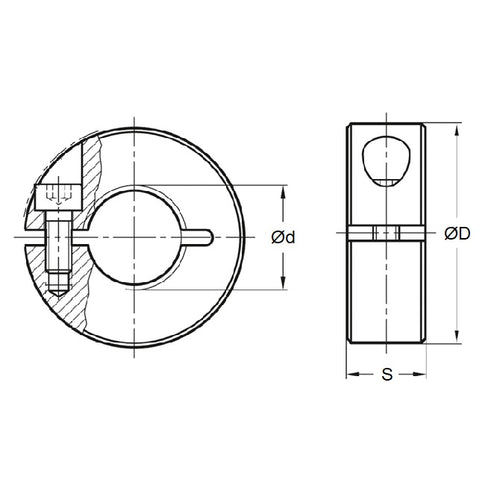

  • Suitable Shaft Size (d) : 7.938 mm
  • Outside Diameter (D) 20.70 mm
  • Overall Width (S) 6.4 mm
  • Screw Size 4-40 UNC
  • Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® CTC-601
  • CTC601
