W0079-F-016-016-SB - Datasheet

MBA

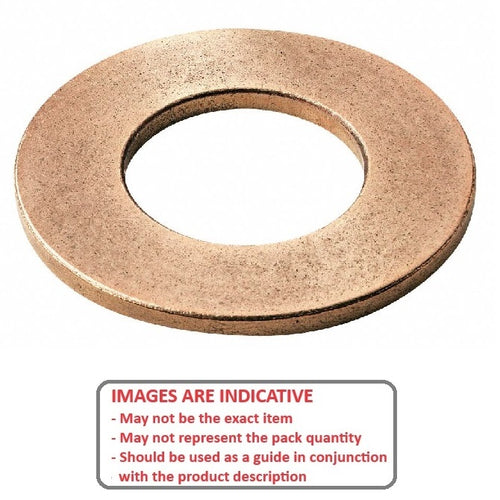

Precision Ground Sintered Bronze Flat Washers. Flat thrust washers made from oil impregnated sintered bronze

Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.

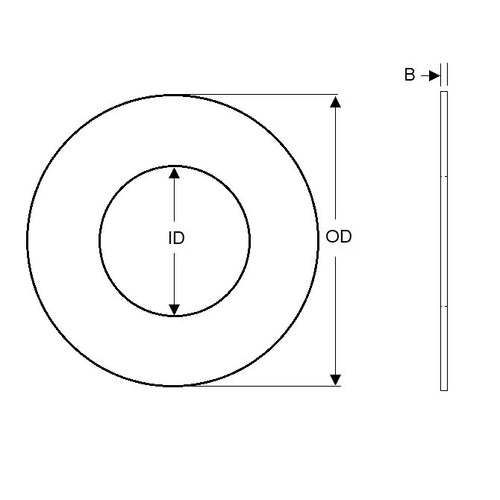

Nominal Inside Diameter (d) : 7.938 mm _{+ 0.19 / - 0.08}
(Equiv. 0.313 in.)
Nominal Outside Diameter (D) 15.88 mm _{+/- 0.25}
(Equiv. 0.625 in.)
Thickness (T) 1.59 mm _{+ /- 0.07}
(Equiv. 0.063 in.)
Other Thrust Washer
Grade Precision
Approx. Actual ID 7.858 mm
Material Sintered Bronze, Self Lubricating

Country of Origin: US
