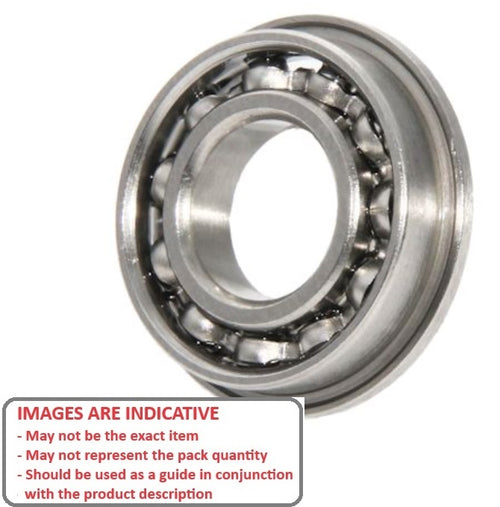

SFR1810-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

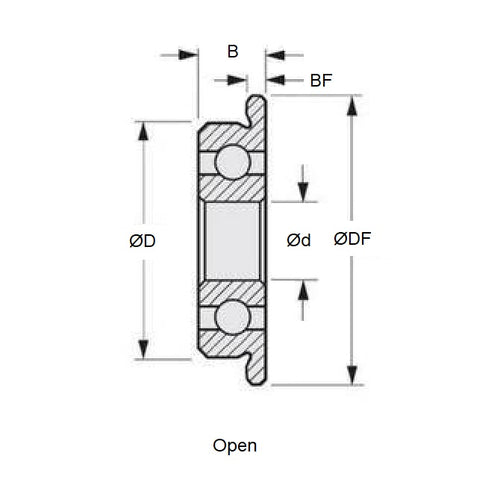

- ID (d)
:
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.) - OD (D)
12.700
mm
+ 0.000 / - 0.0075
(Equiv. 0.5 in.) - Width (B)
3.969
mm
+ 0.000 / - 0.125
(Equiv. 0.156 in.) - Flange Diameter (DF) 13.894 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FR1810
- Limiting Speed 40000
- Cage Type Standard
- Static Load Rating KGf 28
- Dynamic Load Rating KGf 55
- Radii 0.15 mm
- Inner Shoulder (UI) 9.35mm
- Outer Shoulder (UO) 11.15 mm
- Number of Balls 12
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
