IR-0079-0127-0130 - Datasheet

MBA

Category Information

Bearings - Needle Roller Inner Rings

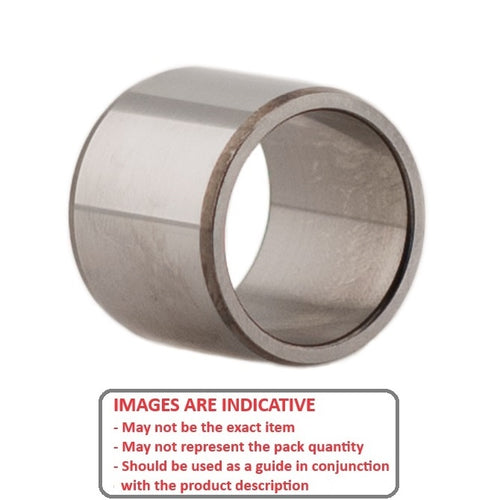

Needle Roller Inner Rings Bearings. Hardened sleeves for needle roller bearings.

  • Needle roller inner rings are high strength, high precision sleeves, that are used as a high quality surface on which a needle roller bearing can to run.
  • Pair them with a suitable needle roller where the bearing ID matches the inner ring OD.
  • They can be used to sleeve a worn shaft, or in applications where it is desirable to run the bearing on an easily replacebale surface.

Product Data

  • Inside Diameter : 7.938 mm
    (Equiv. 0.313 in.)
  • Outside Diameter 12.700 mm
    (Equiv. 0.5 in.)
  • Length (L) 12.950 mm
    (Equiv. 0.51 in.)
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • IKO IRB58
  • Nachi IRB-58
  • S99RH2BNR1016
  • S99RH2-BNR1016
