BL-00794-PB-G1000 - Datasheet

MBA

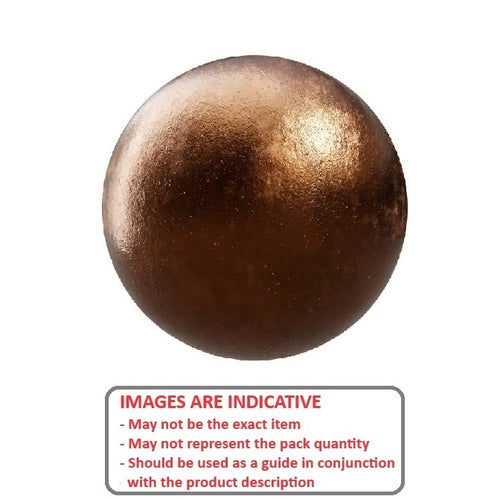

Phosphor Bronze Metallic Balls. Specific Gravity 8.4

Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.

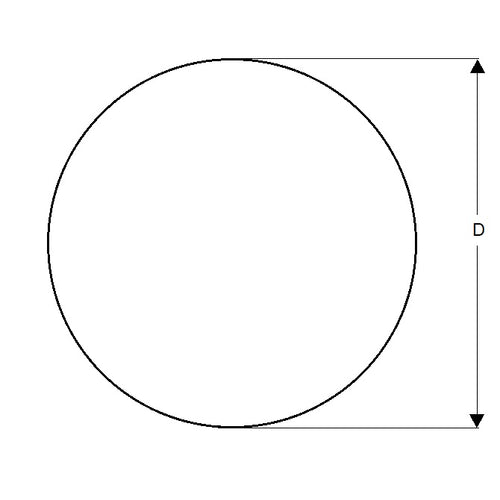

Diameter (D) : 7.938 mm _{+/- 0.1270}
(Equiv. 0.313 in.)
Material Phosphor Bronze
Precision AFBMA Grade 1000
Hardness 75-98 Rockwell B
Properties Good corrosion resistance, widely used as an electrical conductor
Colour Bronze
Specific Gravity 8.4
Ovality +/-0.0254
Material Phosphor Bronze

Country of Origin: GB
