BFM-312-P - Datasheet
MBA
Category Information

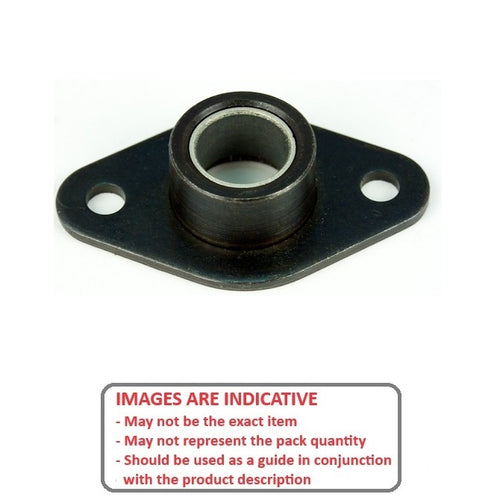

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - PTFE BronzePTFE Bronze Aligning Flanged 2 Bolt Housing and Bearing Assembly. Low profile self aligning flange mounted PTFE bronze bearings
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size : 7.938 mm
- Width (W) 53.34 mm
- Overall Length (A) 16.67 mm
- Overall Height (E) 30.23 mm
- Min to Max Shaft Dia. 7.889 to 7.912 mm
- Max. Radial Dynamic Load 9430 N
- Bolt Hole Centres (L) 38.86 mm
- Max Speed 4820
- Material PTFE Impregnated Bronze
Product Compliance and Data
Additional Resources
Cross References
- 2820T34
