SHLD079-006-SL-P-S3 - Datasheet

MBA

Product Data

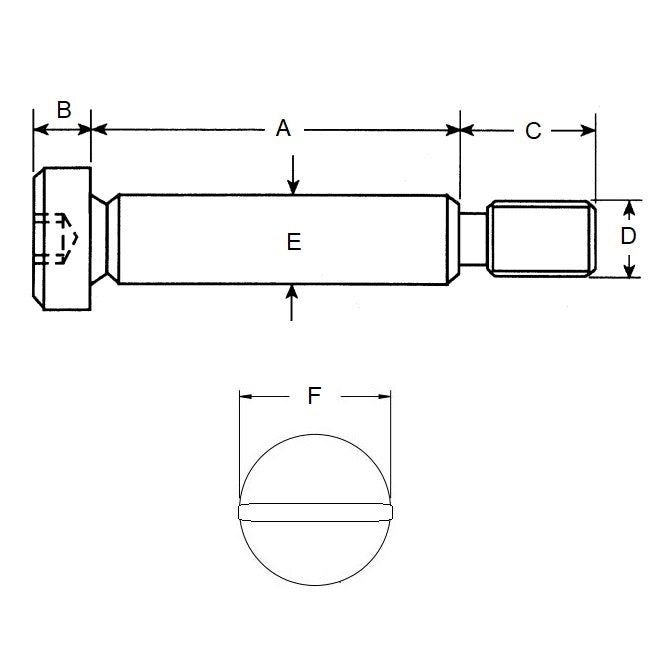

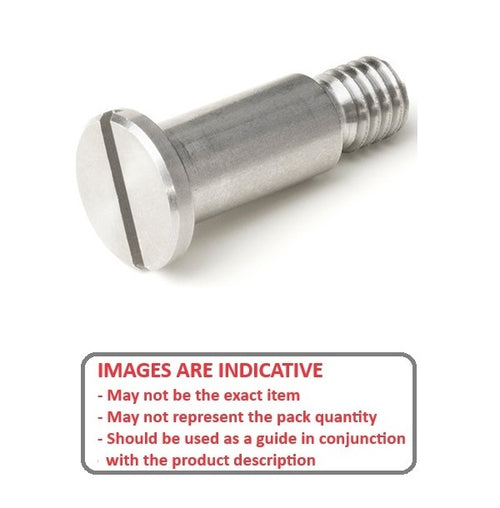

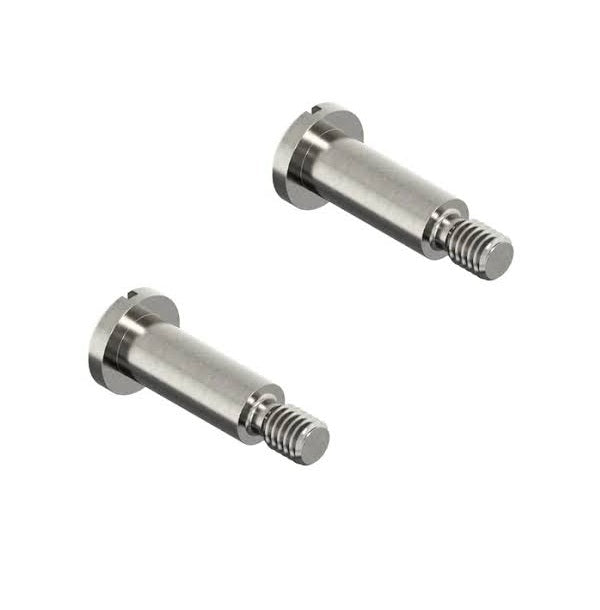

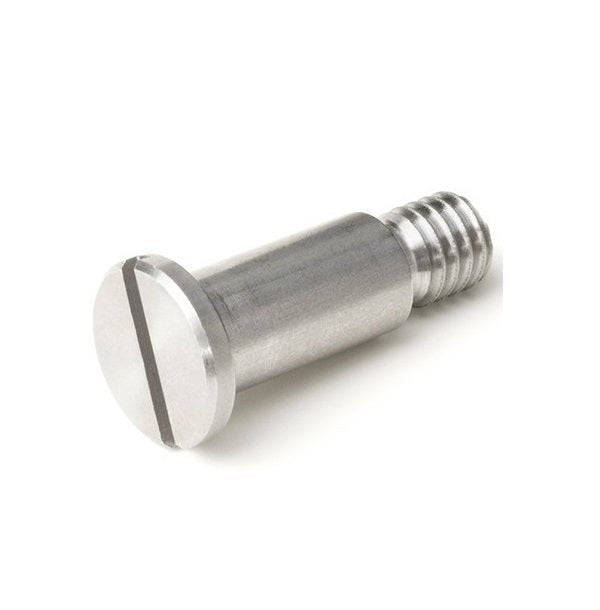

• Shoulder Diameter (E) : 7.938 mm _{- 0.013 / - 0.038}
  (Equiv. 0.313 in.)
• Shoulder Length (A) 6.400 mm
  (Equiv. 0.252 in.)
• Thread (D) 1/4-20 UNC
• Max. Thread Length (S) 11.13 mm
• Head Height (H) 5.56 mm
• Head Diameter (D) 12.70 mm
• Drive Type Slotted Drive
• Thread Type Class 3A Thread
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• S7096YG421008
• S7096Y-G42-1008
