SHLD079-006-SL-S3 - Datasheet
MBA
Category Information

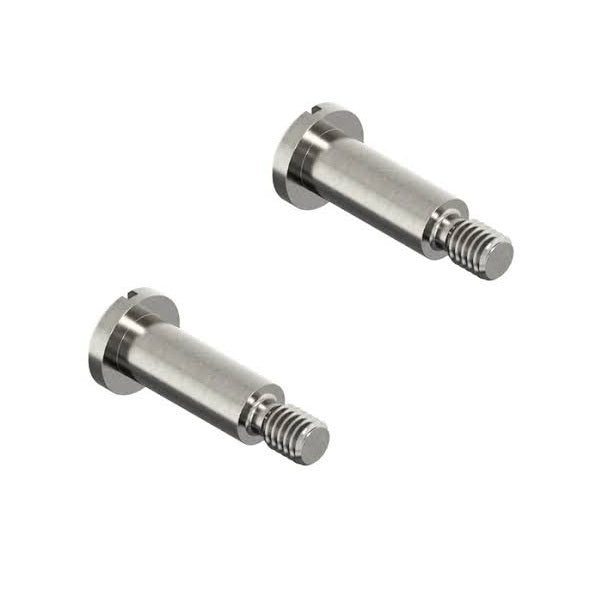

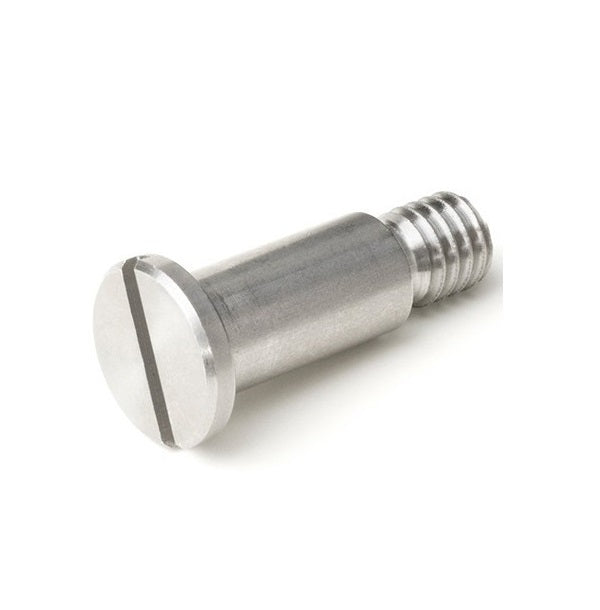

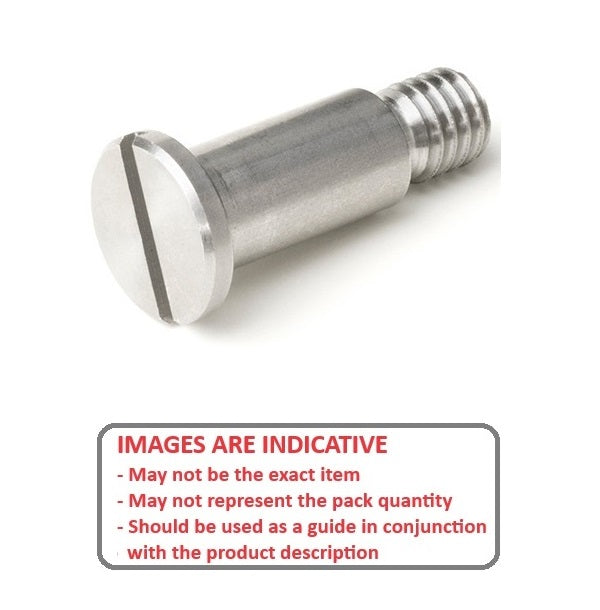

Screws - Shoulder - Slotted - StainlessStainless Slotted Shoulder Screws. 303 Stainless Steel
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data
- Shoulder Diameter (E)
:
7.938
mm
- 0.025 / - 0.127
(Equiv. 0.313 in.) - Shoulder Length (A)
6.350
mm
(Equiv. 0.25 in.) - Thread (D) 1/4-20 UNC
- Max. Thread Length (S) 11.10 mm
- Head Height (H) 5.54 mm
- Head Diameter (D) 12.70 mm
- Drive Type Slotted Drive
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- ART-140
- ART140
