REM-079-L-PP - Datasheet
MBA
Category Information

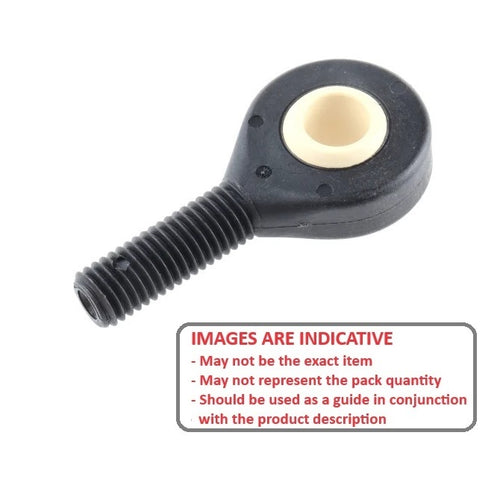

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
7.938
mm
(Equiv. 0.313 in.) - Overall Length (L)
58.75
mm
(Equiv. 2.313 in.) - Thread Size 5/16-24 UNF Left
- Min. Thread Length (l2) 31.75 mm
- Head Width (W) 7.92 mm
- Eye Width (W1) 11.10 mm
- Head Diameter (D) 22.23 mm
- Centre Height (l1) 47.63 mm
- Grease Nipple No
- Max Angle of Pivot 25 °
- Max Torque Strength 10.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K531-LEFT
- Igus KALI-05
- KALI05
- 1064K531LEFT
- S62GMR-031088L
- S62GMR031088L
