BFM-312-NN - Datasheet
MBA
Category Information

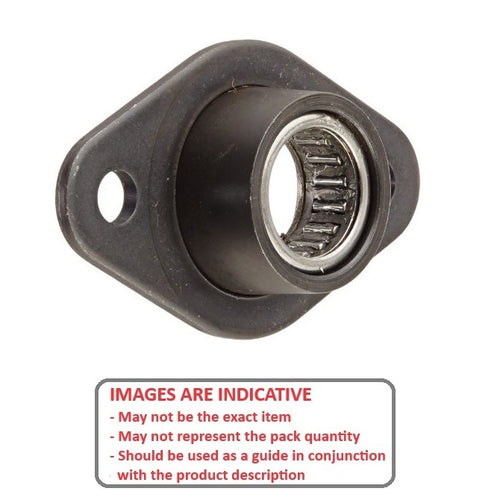

Housing Assembly - Flanged 2 Bolt - Non Aligning - Needle RollerNeedle Roller Non Aligning Flanged 2 Bolt Housing Assembly. Low profile flange mounted needle roller bearings
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

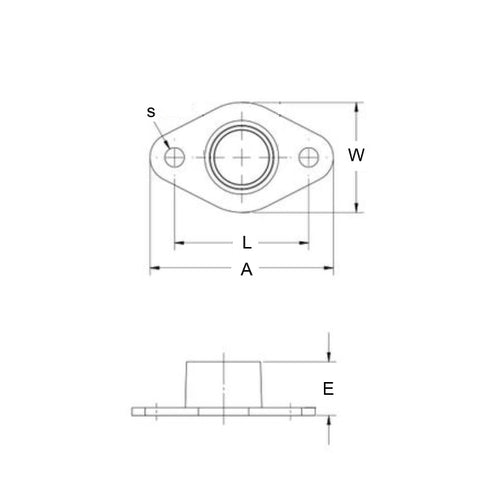

- Nominal Shaft Size
:
7.938
mm
(Equiv. 0.313 in.) - Width (W)
53.34
mm
(Equiv. 2.1 in.) - Overall Length (A)
16.67
mm
(Equiv. 0.656 in.) - Overall Height (E) 30.23 mm
- Min to Max Shaft Dia. 7.925 to 7.938 mm
- Max. Radial Dynamic Load 2891 N
- Bolt Hole Centres (L) 38.9 mm
- Max Speed 35500
- Material Steel
