SLH-0794-1429-05715 - Datasheet
MBA
Category Information

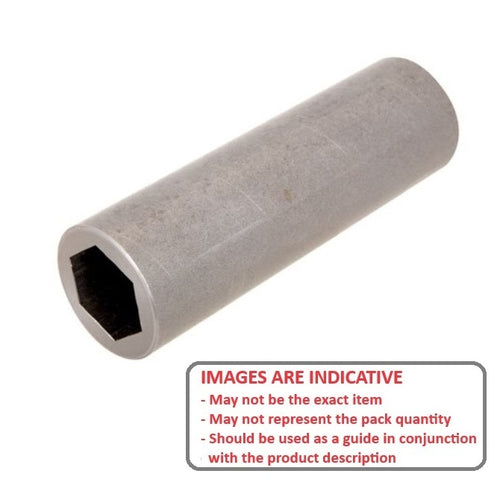

Sleeves - Hex Hole - Carbon SteelCarbon Steel Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data

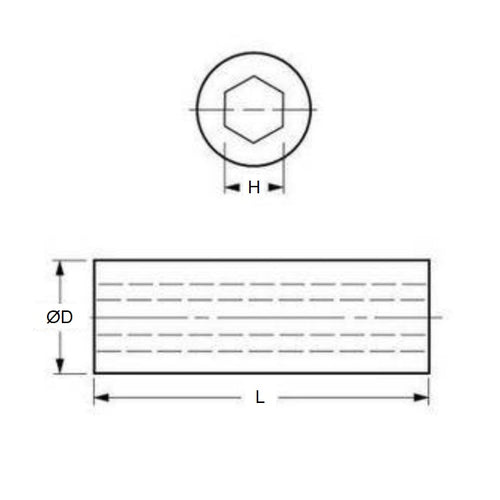

- Nominal Hex Size
:
7.938
mm
(Equiv. 0.313 in.) - Outside Diameter (OD)
14.288
mm
(Equiv. 0.563 in.) - Length (L)
57.150
mm
(Equiv. 2.25 in.) - Actual Hex Size (H) 8.00 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- HHS8
- HHS-8
- A7C2005
- A7C20-05
