Category Information

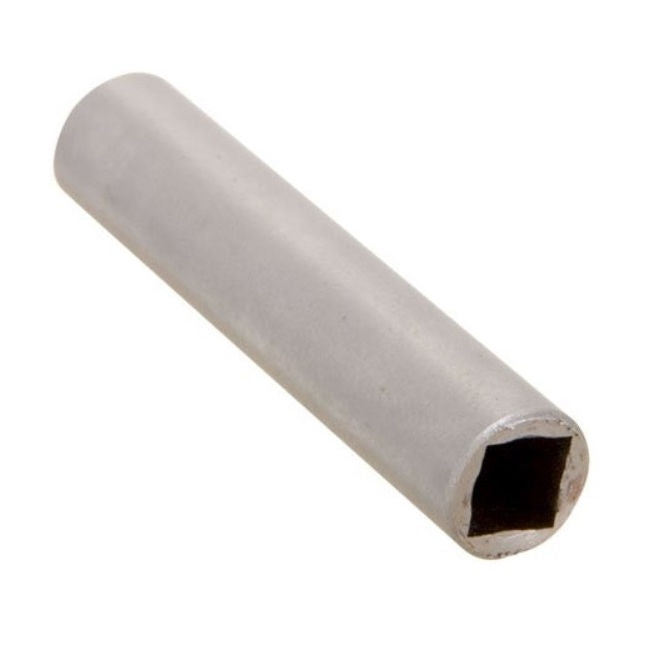

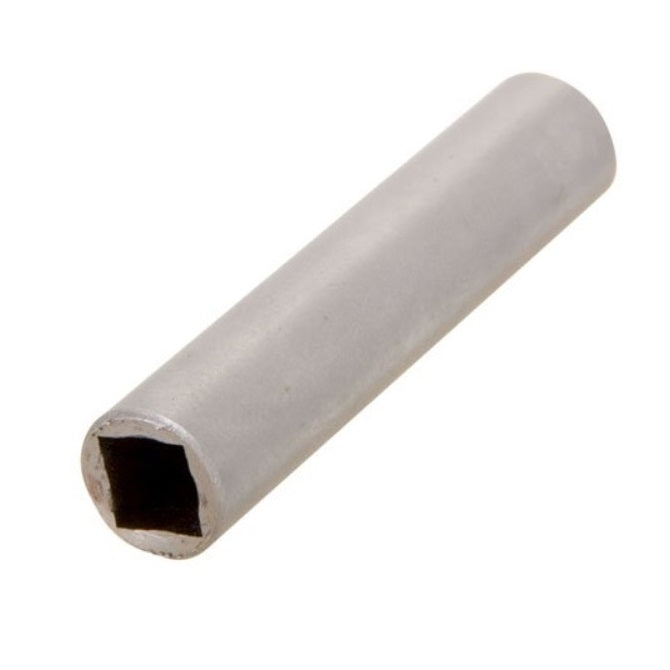

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in).
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
7.938
mm
+/- 0.0254
(Equiv. 0.313 in.) - Outside Diameter (C)
13.081
mm
(Equiv. 0.515 in.) - Length (B)
57.150
mm
(Equiv. 2.25 in.) - Actual Square Size (A) 8.065 mm
- More Information With 0.38mm grinding stock on O.D
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- SHSGP31
- SHSG-P31
