AB11SA-311223 - Datasheet
MBA
Category Information

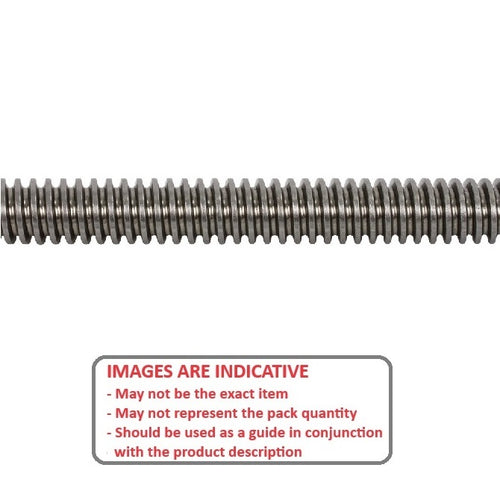

Leadscrew - Length - Imperial - Acme - Stainless Steel 18.8Stainless Steel 18.8 Acme Imperial Length Leadscrew. Acme Leadscrew Thread - Use with Acme Supernuts
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

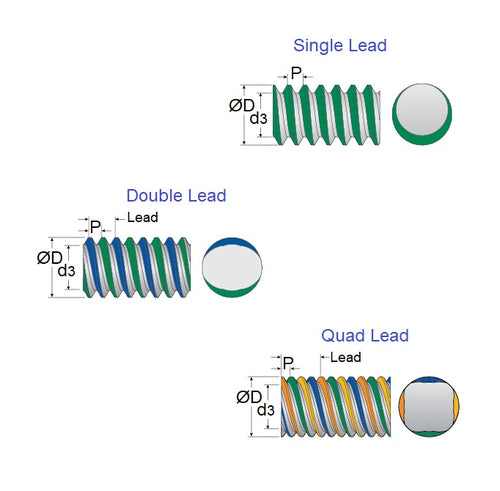

- Outside Diameter
:
7.938
mm
(Equiv. 0.313 in.) - Number of Threads Per Inch 12
- Number of Starts 2
- Root Diameter 5.842 mm
- Lead 4.2333 mm
- Length 914.4 mm
- Direction Right Hand
Product Compliance and Data
Additional Resources
Cross References
- HB11SA-311223
