LZ-312SRS - Datasheet

MBA

Category Information

Clamps - Lorenz

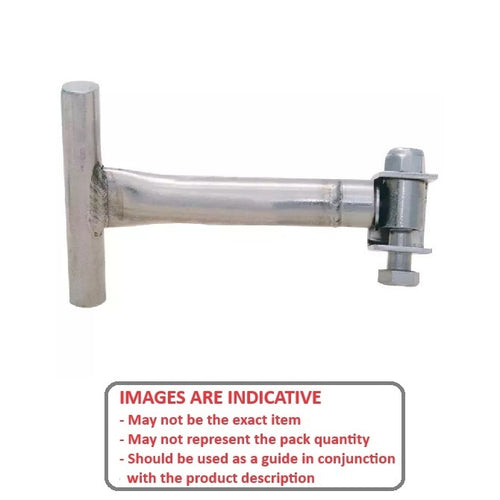

Lorenz Clamps. Patented quick clamp is ideal for door openings on bins, hoppers, tanks and manholes. T-Handle allows torque without tools. The one piece unit is made from highly polished 304 stainless steel.

  • Full 50.8mm adjustment.
  • 180o pivot when disengaged leaving access doorway unobstructed.
  • Will not loosen through vibration.
  • Brackets supplied for easy installation.

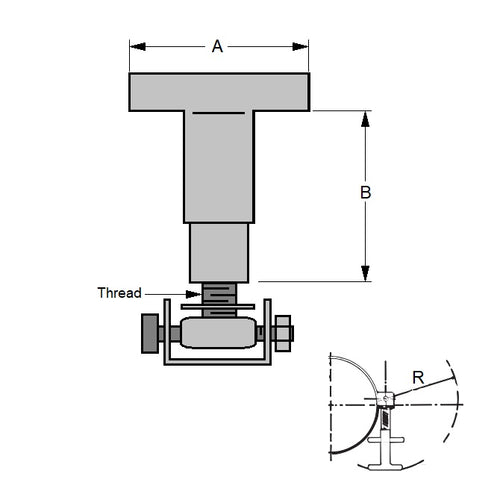

Product Data

  • Thread : 7.938
  • A 63.500 mm
    (Equiv. 2.5 in.)
  • B 76.200 mm
    (Equiv. 3 in.)
  • Radius in Open position (R) 101.600 mm
Country of Origin: US
